Newer Version Is Available

MC9190-G, Wi-Fi (802.11a/b/g), DPM 2D Imager, Windows Mobile 6.5, 256MB RAM/1GB ROM, 53 key keypad, Bluetooth. Interface and power cables sold separately.
Free Shipping

Product was successfully added to your shopping cart.
53060 Symbol

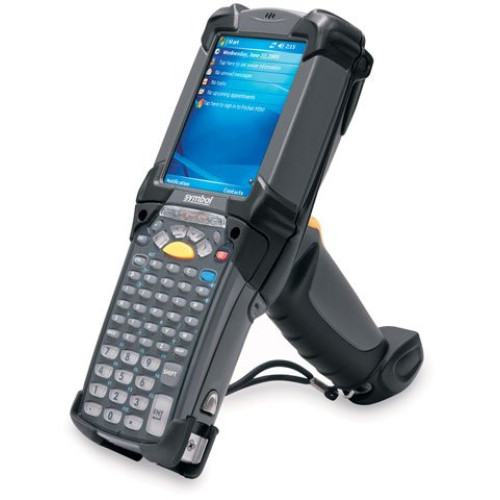

MC9090-GU0HJEFR7US - Symbol MC9090-G RFID Reader

MC9090-G, UHF RFID, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 5.0, 64MB RAM/128MB ROM, 53 key, Bluetooth.
InStock
Free Shipping

Description

The MC9090-G rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090-G is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090-G with Bluetooth supports wireless printing and use of wireless headsets. Those with scan intensive applications such as price audits and inventory management will enjoy the comfort of the pistol grip handle. The MC9090-G gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.
  • 3.8 inch large, bright, color display with backlit keypad - Allows easy viewing in many environments, such as ambient light
  • Extremely rugged design withstands multiple 6 ft. drops (1.8 m) to concrete, 2,000 1 m tumbles (4,000 hits) - Ensures less down time due to accidental drops
  • Intel XScaleTM PXA255 processor at 400 MHz - Delivers high-speed CPU performance for robust enterprise applications, including multimedia
  • IP64 sealing rating (electronic enclosure) - Protects against water and dust to ensure reliable performance in rough conditions
  • Modular 43- and 53 key field-replaceable keyboard options - Provides multiple modes of data entry for maximum efficiency
  • RS-232/USB client or wireless LAN communications - Enables real-time data exchange for maximum productivity
  • Variable range scan engine - Allows short- (4 in./0.10 m) or long-range (40 ft./12.2 m) barcode scanning in one device

Additional Information

Style Handheld
Manufacturer Symbol

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G RFID Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.56 lb

Other

  • Package Contents:
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Environmental Sealing: IP64 (electronic enclosure, display and keypad)
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FFC Part2(SAR)
    • FCC Part 15
    • RSS210
    • EN 300 328
    • EN 301 487
    • EN55022
    • EN55024
  • Additional Information:
    • RFID: Gen 2
    • Country Code: USA Canada APAC
    • Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
    • Voice Communication:
    • Voice-over-IP Ready (P2P, PBX, PPT)
    • Wi-Fi Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Monochrome
  • Screen Resolution: 320 x 240

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 53

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB

Software

  • Operating System: Windows Mobile 5.0

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
