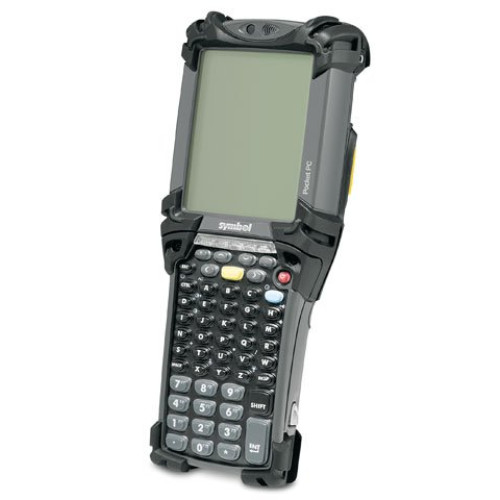

Symbol MC9090-K Mobile Computer
Part #: MC9090-KH0HJEFA6WW | SKU: SYM20237

The MC9090-K rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090-K is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090-K with Bluetooth supports wireless printing and use of wireless headsets. The MC9090-K gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.

Symbol MC9090-K Mobile Computer

Part Details: MC9090-K, Wireless Handheld Terminal: 1D Imager, Color, 64/128MB, 53 key, Windows Mobile 5.0, Audio/Voice/Bluetooth

Additional Information

Display Resolution 240 x 320
IP Rating IP64
Interface Options Bluetooth, Wi-Fi
Manufacturer Symbol
Model Name HT730
Operating System Windows Mobile, Windows Mobile 5.0 Premium
RAM Memory 64 MB
Scanner Type Laser
Style Full-size

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • MSI
    • RSS
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-K
  • Product Name: MC9090-K Mobile Computer

Physical Characteristics

  • Height: 2.2"
  • Width: 3.6"
  • Length: 9.1"

Other

  • Package Contents:
    • MC9090-K Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start G
    • MC9090-K Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start G
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 B
    • EN 300 328
    • EN 301 489-1
    • EN 489-17
    • Laser Safety:
    • IEC Class2/FDA Class II in Accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Communication Options: Audio
    • Region: Worlwide
    • Voice Communication:
    • Voice-over-IP Ready (P2P, PBX, PPT)
    • Wi-Fi Certified

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 53

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO
Extended Details
