| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP64 |
| Interface Options | Wi-Fi |
| Manufacturer | Symbol |
| Model Name | MC9097-S |
| Operating System | Windows Mobile, Windows Mobile 5.0 |
| RAM Memory | 64 MB |
| Scanner Type | Laser |
| Style | Full-size |

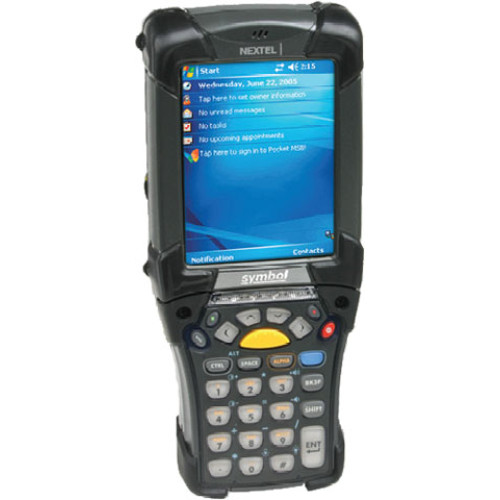

Symbol MC9097-S Specs
Technical Information
- Operating System: Windows Mobile 5.0 Phone Edition
- Processor: Intel PXA270 XScale 624MHz
- Data Collection Type: Wireless
- Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- MSI
- RSS
- UCC/EAN 128
- UPC/EAN
General Information
- Manufacturer: Symbol
- Product Line: Mobile Computer (MC)
- Product Name: MC9097-S Mobile Computer
Physical Characteristics
- Display: 3.8" Color QVGA - Touch Screen LCD
- Display Resolution: 320 x 240
- User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
- Keyboard: 28 Key Numeric Integrated
- Battery Capacity: 1550 mAh
- Battery Type: Lithium Ion - Included
- Dimensions: 2.2" (56mm) x 3.6" (91mm) x 7.9" (201mm)
Environmental Conditions
- Environmental Sealing: IP64
- Temperature:
- -20°C (-4°F) to 50°C (122°F) Operating
- 0°C (32°F) to 40°C (104°F) Charging
- -40°C (-40°F) to 70°C (158°F) Storage
- Humidity: 5 to 95% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 6' To Concrete Multiple at Operating Temprature
- Tumble: 2000 one-meter tumbles at room temperature (4000 hits)
Wireless Data Communications
- Network Connectivity:
- WLAN 802.11 b/g/a
- WPAN Bluetooth
- WWAN iDEN (800 - 900 MHz)
- Maximum RF Data Rate Supported: 54 Mbps
- Output Power: 100mW
- Antenna Connectors: Internal
- Frequency Band/Bandwidth: 2.4GHz to 5GHz
Other
- Additional Information: WAN Carrier: Nextel
- Package Contents: MC9097-S Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide
Memory
- RAM Memory: 64MB
- Flash Memory: 128MB
Agency Approvals
- Agency Approvals: Electrical Safety: Certified to UL60950 CSA C22.2 No. 60950 EN60950/IEC 950 EMI/RFI: North America: FCC Part 2 (SAR) FCC Part 15 RSS210 Class B EN 301 489-1 EN 301 489-17 FCC Part 90 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
