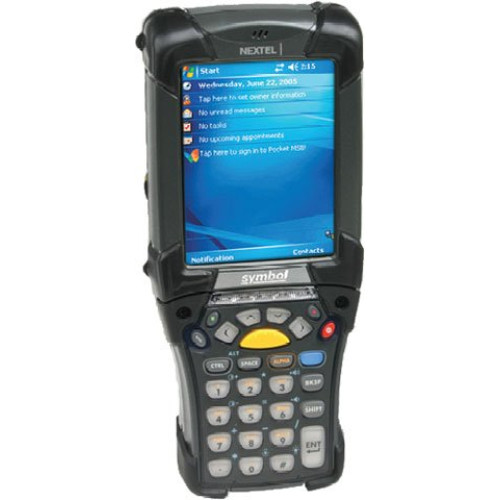

Symbol MC9097-S Mobile Computer

Symbol MC9097-S Mobile Computer
Part #: MC9097-SHTHJBHA6WW | SKU: SYM21537

The Symbol MC9097-S rugged mobile computer enables your mobile workers with a flexible always-on voice and data connection to co-workers, clients, and associates, as well as critical business applications and systems - all on a single device. Converged voice and data capabilities, combined with multi-mode wireless and advanced data capture options makes the MC9097-S a complete solution for your field sales, service and delivery personnel. The MC9097-S provides omnidirectional 1D and 2D barcode scanning, image capture, variable range scan engine for accurate barcode scanning and intuitive laser aiming.

Symbol MC9097-S Mobile Computer

Part Details: MC9097-S, Windows Mobile 5.0 Phone Edition, 64MB RAM, wireless, 38 key alphanumeric keypad, color display, Xscale processor. Includes 128MB Flash, IDEN, SE824 and Bluetooth
Need a different version of the Unitech HT730 Mobile Computer? View all 6 configurations

Additional Information

Display Resolution 240 x 320
IP Rating IP64
Interface Options Wi-Fi
Manufacturer Symbol
Model Name HT730
Operating System Windows Mobile, Windows Mobile 5.0
RAM Memory 64 MB
Scanner Type Laser
Style Full-size
Symbol HT730 Specs Symbol HT730 Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 5.0 Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • MSI
    • RSS
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9097-S Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 38 Key Numeric Prime Integrated
  • Battery Capacity: 1550 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.2" (56mm) x 3.6" (91mm) x 7.9" (201mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at Operating Temprature
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN iDEN (800 - 900 MHz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: WAN Carrier: Nextel
  • Package Contents: MC9097-S Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: Electrical Safety: Certified to UL60950 CSA C22.2 No. 60950 EN60950/IEC 950 EMI/RFI: North America: FCC Part 2 (SAR) FCC Part 15 RSS210 Class B EN 301 489-1 EN 301 489-17 FCC Part 90 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
