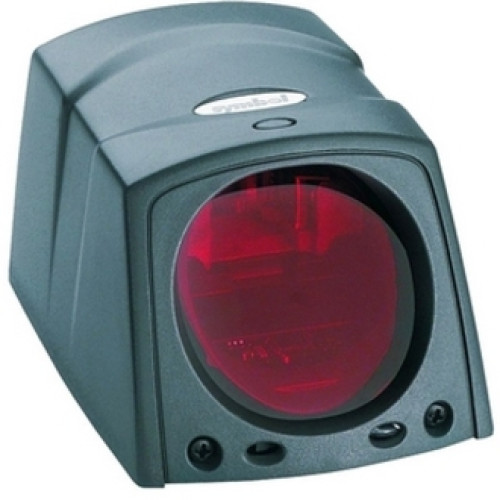

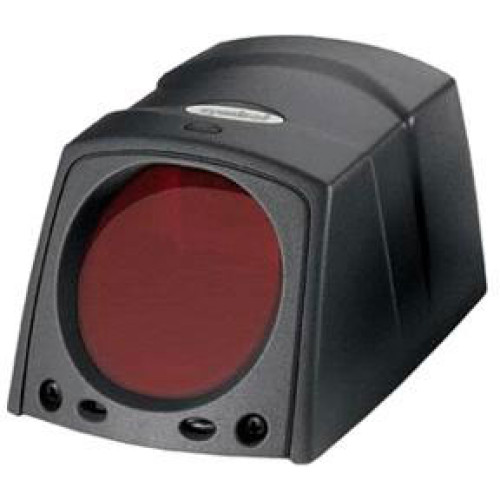

Symbol MiniScan MS3207 Fixed Barcode Scanner Symbol MiniScan MS3207 Fixed Barcode Scanner Symbol MiniScan MS3207 Fixed Barcode Scanner

Symbol MiniScan MS3207 Fixed Barcode Scanner
Part #: MS-3207-I000 | SKU: SYM17253

The MiniScan MS3207 is a high-performance, fixed mount scanner offering a unique high-speed omni-directional scan pattern to read bar codes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) bar codes. The MiniScan MS3207 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omni-directional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.

Symbol MiniScan MS3207 Fixed Barcode Scanner

Part Details: MiniScan (Housed Scan Engine, CL 2 Omnidirectional, USB and Synapse)
Need a different version of the Symbol MiniScan MS3207 Fixed Barcode Scanner? View all 3 configurations

Additional Information

Manufacturer AIDC Symbol
Model Name MiniScan MS3207
Scanner Type Imager
Symbol MiniScan MS3207 Specs Symbol MiniScan MS3207 Specs (pdf)

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • PDF 417
    • Micro PDF417
    • UPC/EAN
    • Code 39
    • Interleaved 2 of 5
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • RSS Variants
  • Scanner Type: Laser
  • Scan Rate: 640 Scans/sec
  • Interface Options:
    • RS-232 Serial
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional

General Information

  • Manufacturer: Symbol
  • Product Line: MiniScan
  • Product Name: MS3207 Barcode Scanner

Physical Characteristics

  • Dimensions: 1.86" (47.24mm) x 2.2" (55.88mm) x 3.43" (87.12mm)
  • Weight: 4.4 oz

Agency Approvals

  • Agency Approvals:
    • CDRH Class II
    • IEC Class 2
    • Certified to UL1950 CA C22-2 NO950 ENG60950/ IEC950 EMI/RFI: FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Other

  • Cables Included: USB

Warranty

  • Manufacturer Warranty: 12 Month(s)
Extended Details

Recommended Accessories for Model: Symbol MiniScan MS3207 Fixed Barcode Scanner

  • Zebra KT-152342-01 Mounting Hardware and Stands
    Part #: KT-152342-01 | SKU: ZEB178443

    Mounting Hardware and Stands - Zebra - DS457 Accessory - Mounting Bracket For Adapting DS457 To Fit Into Holes For Ms320X
    Price: $40.87
    In Stock

  • Zebra KT-65578-01R Mounting Hardware and Stands
    Part #: KT-65578-01R | SKU: ZEB49131

    Mounting Hardware and Stands - Zebra - Miniscan Adjustable Mounting Bracket - To Mount The DS457 - Please Also Use Adaptor Plate KT-152342-01
    Price: $81.72

  • Zebra 25-58923-01R Cables, Connectors, and Adapters
    Part #: 25-58923-01R | SKU: ZEB29293

    Cables - Connectors - and Adapters - Zebra - 9 Pin Female To USB - Right Angle Connector - No Beeper Or Trigger Jack - 6' Straight
    Price: $40.87

  • Zebra Mini Scan Series Mounting Hardware and Stands
    Part #: 20-60136-02R | SKU: ZEB61845

    Twilight black gooseneck intellistand for MiniScan series. Includes screws for mounting scanner to the stand

  • Symbol Mini Scan Series Accessory
    Part #: 25-13227-02 | SKU: SYM17123

    Cable Assembly (Host, F, TXD-2)
