3861 Symbol

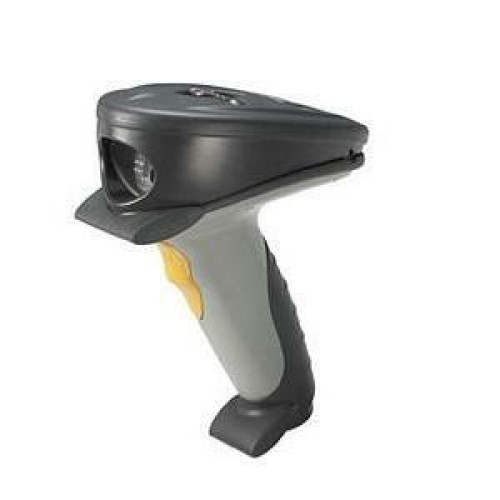

Symbol P360 Bar code Scanner Part # P360-SR1214100WW

The P360 memory scanner breaks new ground in industrial bar code scanning. Equipped with memory keypad display and an award-winning ergonomic design this handheld scanner switches seamlessly from data entry to data management. Ideal for extreme environments: warehouse stores builders' yards and receiving and cross-dock applications the economical P360 plays many roles. This scanner sealed to IP54 stands up to conditions in extreme environments: dust rain heat and cold as well as 6 ft-1.8 m drops to concrete. Connected to a host it is a corded rugged handheld scanner. In cordless mode the multi-tasking P360 goes where other memory scanner can't. where the data has to be managed and collected: onto the loading dock into the warehouse or out into the yard for cycle counts receiving inventory checks and transfers.

P360-SR1214100WW - Symbol P360 Bar code Scanner

Part Details: P360, scanner. Includes 2-line, 20-character display, 4MB flash, standard 17 key keypad, battery, product reference guide, & Link-Lite software. Order cradle, cradle-to-host cable, & power supply separately. See accessories.

Additional Information

Manufacturer Symbol
Product Condition New
  • 17 key alphanumeric keypad and 2-line x 20-character display - Allows users to easily view, enter and delete scanned records for maximum productivity
  • 4MB or 8MB memory - Provides ample memory capacity for inventory counts and look-up tables
  • Corded or batch operation - Enables both inventory (batch) and POS (real-time cabled) data collection
  • Flash memory - Conduct easy software upgrades in the field
  • Forward-scanning pistol grip - Reduces user fatigue with comfortable grip for scan-intensive environments
  • Non-volatile memory - Saves data if the unit loses power
  • Optional MCL-Designer - Develop custom data management applications with this software
  • Preloaded inventory application software - Scan and store barcode data right out of the box-enter quantities, review and delete records
  • Sealed to IP54 standards (P360 only) - Suitable for extreme environments
  • Supports 123Scan utility software and advanced data formatting (ADF) - Delivers seamless integration of scanned data into the existing host application

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN
    • Code 39
    • Trioptic Code 39
    • Code 39 Full ASCII
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • EAN-128
    • Code 128
    • Discrete 2 of 5
    • Coupon Code
  • Scanner Type: Laser
  • Scan Rate: 35 Scans/sec
  • Interface Options:
    • Dual RS-232
    • USB
    • RS-232 Serial
    • Keyboard Wedge
    • OCIA
  • Interface Connectivity: Corded
  • Scan Pattern: Bi-directional
  • Power Supply: External
  • Battery Capacity: 1100 mAh

General Information

  • Manufacturer: Symbol
  • Product Line: Phaser
  • Product Name: P360 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.0" (177.8mm) x 9.2" (233.68mm) x 3.5" (88.9mm) - Scanner
    • 3.5" (88.9mm) x 4" (101.6mm) x 9.5" (241.3mm) - Cradle
  • Weight: 12 oz
  • Color:
    • Yellow
    • Gray

Agency Approvals

  • Agency Approvals:
    • Certification to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • CDRH Class II
    • IEC Class 2

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95%
Extended Details
