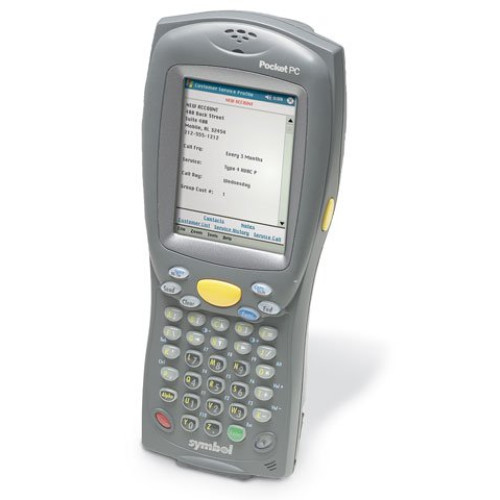

Symbol PDT 8100 Mobile Computer
Part #: PDT8100-T5BA4000 | SKU: SYM16344

The PDT PDT 8100 from Symbol Technologies bridges the gap between pure pen-based and key-based mobile data collection solutions. The first Pocket PC device available with multiple keyboard options the PDT 8100 is a versatile large-screen handheld that delivers the functionality of Pocket PC with the convenience of tactile key-based data entry.

Symbol PDT 8100 Mobile Computer

Part Details: PDT 8100, 64MB RAM, 47 keys, color display, XScale processor. Includes 1D laser scanner & Pocket PC OS. Order cradle, cables, & battery separately. See accessories.

Need a different version of the Symbol PDT 8100 Mobile Computer? View all 6 configurations

Additional Information

Display Resolution	240 x 320
Manufacturer AIDC	Symbol
Model Name	PDT 8100
Operating System	Windows Pocket PC
RAM Memory	64 MB
Scanner Type	Laser
Style	Full-size

Symbol PDT 8100 Specs (pdf)

Technical Information

Operating System: Windows Mobile 2003
Processor: Intel XScale 400MHz
Data Collection Type: Batch
Scanner Type: Laser Standard Range
Symbologies Supported:
- Code 128
- UPC/EAN/JAN
- UCC/EAN 128
- Code 39
- Code 93
- Discrete 2 of 5
- Interleaved 2 of 5
- Codabar (NW7)
- RSS Variants

General Information

Manufacturer: Symbol
Product Line: Portable Data Terminal (PDT)
Product Name: PDT 8100 Portable Data Terminal

Physical Characteristics

Display: 3.5" Color QVGA - Touch Screen LCD
Display Resolution: 320 x 240
User Accessible Expansion Slot: CF Card Type 2
Keyboard: 28 Key Alpha Numeric Quick Grip Compatible Integrated
Battery Capacity: 1950 mAh
Battery Type: Lithium Ion - Included
Dimensions: 8.5" (216mm) x 3.7" (94mm) x 1.8" (46mm)
Weight: 16.5 oz - with battery

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 90% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Contact Discharge
Drop Spec: 4' To Concrete
Tumble: One-half meter: 250 Cycles (500 drops)

Agency Approvals

Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA

Other

Package Contents:
- PDT 8100 Portable Data Terminal
- Battery
- Handstrap
- Stylus
- Quick Reference Guide

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
