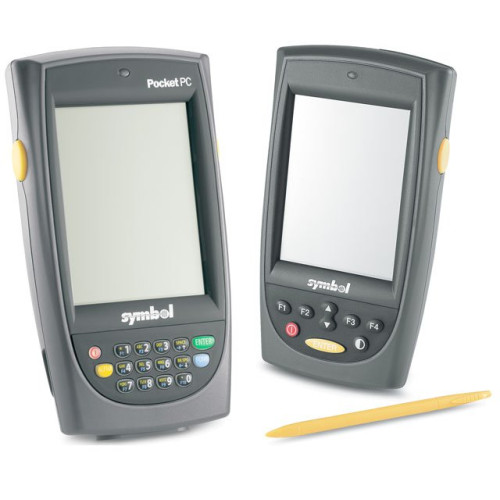

Symbol PPT 8800 Mobile Computer
Part #: PPT8800-R3B91000 | SKU: SYM16563

The PPT 8800 is a durable, compact scanner perfect for use wherever timely data scanning is required.

Symbol PPT 8800 Mobile Computer

Part Details: PPT 8800, 128 MB RAM, 15 keys, color display. Includes RSS capable scanner, battery, & Windows Mobile 2003 OS. Order cradle & cables separately. See accessories.

Additional Information

Display Resolution 240 x 320
IP Rating IP54
Manufacturer Symbol
Model Name PPT 8800
Operating System Windows Mobile, Windows Mobile 2003
RAM Memory 128 MB
Scanner Type Laser
Style Phone-size

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • UPC/EAN/JAN
    • Code 39
    • Code 93
    • Code 128
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar (NW7)
    • UCC/EAN 128
    • RSS Variants

General Information

  • Manufacturer: Symbol
  • Product Line: Portable Pen Terminal (PPT)
  • Product Name:
    • PPT 8800 Handheld Terminal
    • PPT8800 Portable Pen Terminal

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 320 x 240
  • Keyboard: 15 Key Alpha Function Numeric Integrated
  • Battery Capacity: 1700 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.28" (33mm) x 3.22" (82mm) x 5.75" (146mm)
  • Weight: 10.4 oz

Agency Approvals

  • Agency Approvals:
    • Certified to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • CDRH Class II
    • IEC Class 2

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 70°C (158°F) Storage
  • Humidity: 5 to 90% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kV Air Discharge
    • +/-8kV Contact Discharge
  • Drop Spec: 4' To Concrete

Other

  • Package Contents:
    • PPT 8800 Handheld Terminal
    • Battery
    • Handstrap
    • Stylus
    • Case
    • Quick Reference Guide
    • PPT8800 Portable Pen Terminal

Memory

  • RAM Memory: 128MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Symbol PPT 8800 Mobile Computer

  • Zebra DS3578-ER Power Device
    Part #: 50-16000-182R | SKU: 21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $13.92
    In Stock
  • Zebra ET1 Enterprise Power Device
    Part #: 23844-00-00R | SKU: 26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $18.51
    In Stock
  • Symbol PPT 8800 Accessory
    Part #: PPT88XX-SERIAL-STARTER | SKU: 21574

    PPT8800 Serial Starter Kit. Includes everything you need to run your PPT8800: charging/communications cradle, serial cable, US power supply and AC line cord. For use with units using standard 1700 mAh batteries only.
  • Symbol PPT 8800 Accessory
    Part #: PPT88XX-SERIAL-LCB-STARTER | SKU: 21575

    PPT8800 Serial Starter Kit - Large Capacity Battery. Includes everything you need to run your PPT8800: charging/communications cradle, serial cable, US power supply and AC line cord. For use with units using either 1700 mAh or 3400Ah batteries and/or trigger handle.
  • Zebra PPT 8800 Battery
    Part #: 21-60332-01 | SKU: 16566

    3400 mAh battery. Order with (Part# KT-61579-01)
    MSRP: $136.09 Price: $100.53
