Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP54 |
| Manufacturer | Symbol |
| Model Name | PPT 8800 |
| Operating System | Windows CE .NET |
| RAM Memory | 32 MB |
| Scanner Type | Laser |
| Style | Phone-size |

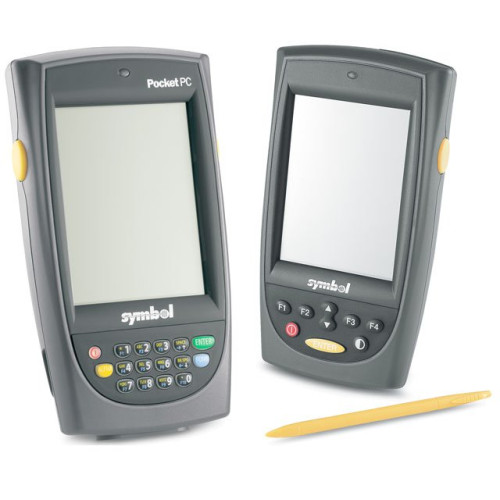

Symbol PPT 8800 Specs
Technical Information
- Operating System: Windows Embedded CE .Net 4.1
- Processor: Intel XScale 300MHz
- Data Collection Type: Batch
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- UPC/EAN/JAN
- Code 39
- Code 93
- Code 128
- Interleaved 2 of 5
- Discrete 2 of 5
- Codabar (NW7)
- UCC/EAN 128
General Information
- Manufacturer: Symbol
- Product Line: Portable Pen Terminal (PPT)
- Product Name: PPT8800 Portable Pen Terminal
Physical Characteristics
- Display: 3.5" Color QVGA - Touch Screen TFT LCD
- Display Resolution: 240 x 320
- Keyboard: 6 Key Standard Integrated
- Battery Capacity: 1700 mAh
- Battery Type: Lithium Ion - Included
- Dimensions: 3.1" (79mm) x 5.7" (145mm) x 1.3" (33mm)
- Weight: 10.1 oz - with battery
Environmental Conditions
- Environmental Sealing: IP54
- Temperature:
- 14°F (-10°C) to 122°F (50°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- Humidity: 5 to 90% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 4' To Concrete
Memory
- RAM Memory: 32MB
- Flash Memory: 32MB
Other
- Additional Information: Display color: 65K colors Scanner Type: SE 800 HP Proton
- Package Contents: PPT8800 Portable Pen Terminal Case Stylus Battery Handstrap Quick Reference Guide
Wireless Data Communications
- Antenna Connectors: N/A
Agency Approvals
- Agency Approvals: Electrical Safety: UL1950 EN60950/IEC950 CSA C22.2 No. 950 EMI/RFI: Australian SMA ICES-003 Class B FCC Part 15 Class B European Union EMC Directive Laser Safety: IEC Class 2 CDRH Class II Hazardous Locations: Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class I, Division 2, Groups A, B, C, D
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
