Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP54 |
| Manufacturer | Symbol |
| Model Name | PPT 8846 |
| Operating System | Windows Mobile, Windows Mobile 2003 |
| RAM Memory | 64 MB |
| Scanner Type | Laser |
| Style | Phone-size |

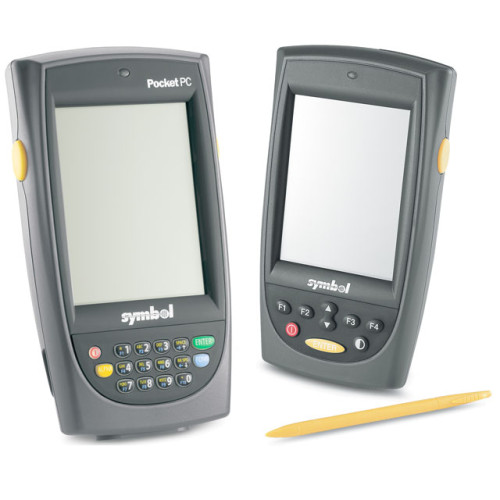

Symbol PPT 8846 Specs
Technical Information
- Operating System: Windows Mobile 2003
- Processor: Intel XScale 400MHz
- Data Collection Type: Wireless
- Wireless Security:
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
- Airbeam Safe (VPN)
- WEP 40
- WEP 40 bit
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- Code 128
- UPC/EAN/JAN
- UCC/EAN 128
- Code 39
- Code 93
- Discrete 2 of 5
- Interleaved 2 of 5
- Codabar (NW7)
- RSS
General Information
- Manufacturer: Symbol
- Product Line: Portable Pen Terminal (PPT)
- Product Name:
- PPT 8846 Handheld Terminal
- PPT8846 Portable Pen Terminal
Physical Characteristics
- Display: 3.5" Color QVGA - Touch Screen TFT LCD
- Display Resolution: 320 x 240
- Keyboard: 6 Key Standard Integrated
- Battery Capacity: 1700 mAh
- Battery Type: Lithium Ion - Included
- Dimensions: 1.28" (33mm) x 3.22" (82mm) x 5.75" (146mm)
- Weight: 11.1 oz - with battery
Environmental Conditions
- Environmental Sealing: IP54
- Temperature:
- -10°C (14°F) to 50°C (122°F) Operating
- -25°C (-13°F) to 70°C (158°F) Storage
- Humidity: 5 to 90% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 4' To Concrete
Agency Approvals
- Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class II
- IEC Class 2
Other
- Package Contents:
- PPT 8846 Handheld Terminal
- Battery
- Handstrap
- Stylus
- Case
- Quick Reference Guide
- PPT8846 Portable Pen Terminal
Wireless Data Communications
- Network Connectivity: WLAN 802.11b
- Maximum RF Data Rate Supported: 11 Mbps
- Output Power: 100mW
- Antenna Connectors: Internal
- Frequency Band/Bandwidth: 2.4GHz to 2.5GHz
Memory
- RAM Memory: 64MB
- Flash Memory: 64MB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
