Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP54 |
| Manufacturer AIDC | Symbol |
| Model Name | PPT 8846 |
| Operating System | Windows Mobile, Windows Mobile 2003 |
| RAM Memory | 64 MB |
| Scanner Type | Laser |
| Style | Phone-size |

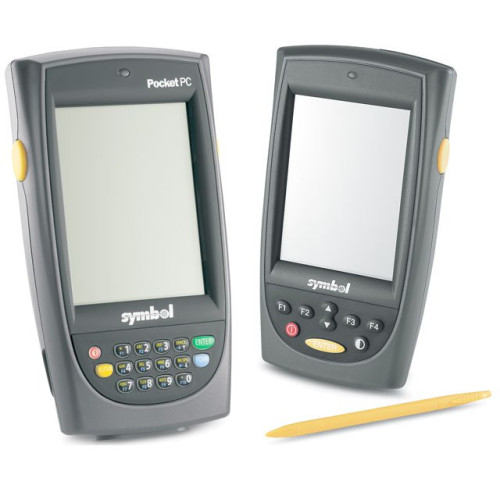

Symbol PPT 8846 Specs
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 48" To Concrete
- Barcode Symbology Supported:
- Codabar (NW7)
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- UCC/EAN 128
- UPC/EAN/JAN
- RSS Variants
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: PPT8846
- Product Name: PPT8846 Portable Pen Terminal
Physical Characteristics
- Height: 1.3"
- Width: 3.2"
- Length: 5.8"
- Weight (Approximate): 11.10 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- PPT 8846 Portable Pen Terminal
- Battery
- Hand Strap
- Stylus
- Case
- Quick Reference G
- PPT 8846 Portable Pen Terminal
- Battery
- Hand Strap
- Stylus
- Case
- Quick Reference G
- Certifications & Standards:
- Electrical Safety:
- Certified to UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Laser Safety:
- CDRH Class II
- IEC Class 2
- Additional Information: Country/Region: Worldwide
Network & Communication
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Infrared: Yes
- Wireless LAN Standard: IEEE 802.11b
- Wireless Security:
- Kerberos
- Keyguard - (SBL TKIP)
- LEAP
- PEAP
- WEP 128 bit
- WPA Home (PSK)
- WPA Enterprise (EAP Authenticated)
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 320 x 240
Battery Information
- Battery Capacity: 1700 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 400 MHz
- Processor Type: XScale
Memory
- Flash Memory: 64 MB
- Standard Memory: 64 MB
Software
- Operating System: Windows Mobile 2003
Keyboard/Keypad
- Number of Keys: 6
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
