Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP54 |
| Manufacturer AIDC | Symbol |
| Model Name | PPT 8846 |
| Operating System | Windows CE .NET 4.1 Embedded |
| RAM Memory | 32 MB |
| Scanner Type | Laser |
| Style | Phone-size |

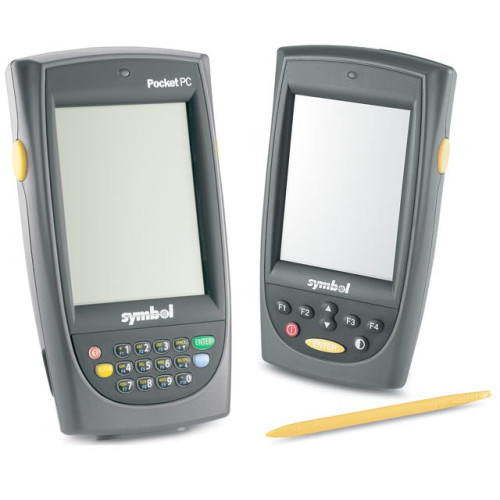

Symbol PPT 8846 Specs
Technical Information
- Operating System: Windows Embedded CE .Net 4.1
- Processor: Intel XScale 300MHz
- Data Collection Type: Wireless
- Wireless Security:
- LEAP
- Kerberos
- WEP 128 bit
- Airbeam Safe (VPN)
- Keyguard - (SBL TKIP)
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- UCC/EAN 128
- UPC/EAN/JAN
- Codabar (NW7)
- Interleaved 2 of 5
General Information
- Manufacturer: Symbol
- Product Line: Portable Pen Terminal (PPT)
- Product Name:
- PPT 8846 Handheld Terminal
- PPT 8846 Portable Pen Terminal
Physical Characteristics
- Display: 3.5" Color QVGA - Touch Screen TFT LCD
- Display Resolution: 240 x 320
- Keyboard: 6 Key Standard
- Battery Capacity: 1700 mAh
- Battery Type: Lithium Ion - Included
- Dimensions: 1.3" (33mm) x 3.1" (79mm) x 5.7" (145mm)
- Weight: 10.8 oz - Including battery
Other
- Additional Information:
- Display: 65K Color
- Scanner Type: SE 800 HP Proton
- Package Contents:
- PPT 8846 Handheld Terminal
- Case
- Stylus
- Battery
- Handstrap
- Quick Reference Guide
- PPT 8846 Portable Pen Terminal
Environmental Conditions
- Environmental Sealing: IP54
- Temperature:
- 14°F (-10°C) to 122°F (50°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- Humidity: 5 to 90% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 4' To Concrete
Agency Approvals
- Agency Approvals:
- UL1950
- EN60950/IEC950
- CSA C22.2 No. 950
- Australian SMA
- ICES-003 Class B
- FCC Part 15 Class B
- European Union EMC Directive
- IEC Class 2
- CDRH Class II
Wireless Data Communications
- Network Connectivity: WLAN 802.11b
- Maximum RF Data Rate Supported: 11 Mbps
- Output Power: 100mW
- Antenna Connectors: Internal
- Frequency Band/Bandwidth: 2.4GHz to 2.5GHz
Memory
- RAM Memory: 32MB
- Flash Memory: 32MB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
