| Form Factor | Wearable |
|---|---|
| Manufacturer | Symbol |
| Model Name | WT4090 |
| Scanner Capability | 1D |
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Bi-directional
- Scan Rate: 40 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- Supports new Reduced Space Symbology (RSS) standard
- Supports new Reduced Space Symbology (RSS) standard
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 7" - 9.50"@5 mil - Code 39
- 9.75" - 15.25"@7.50 mil - Code 39
- 20.25" - 27.25"@13 mil - UPC
- 29.25" - 42.50"@20 mil - Code 39
- 54.50" - 84.75"@55 mil - Code 39
General Information

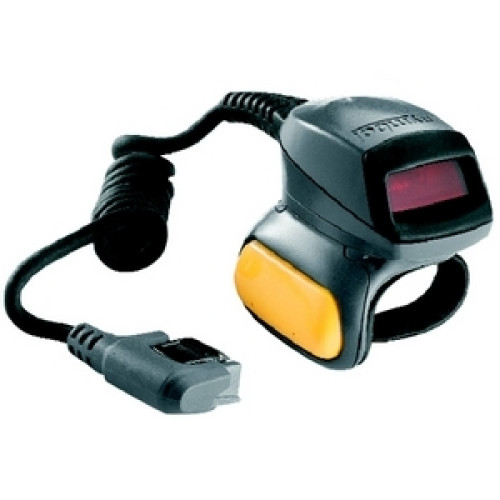

- Product Type: Wearable Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: RS309
- Product Name: RS309 Wearable Barcode Reader
Physical Characteristics
- Height: 1.5"
- Width: 2.4"
- Depth: 2.7"
- Weight (Approximate): 3.50 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- RoHS Compliant
- Electrical Safety:
- CSA C22.2 No. 60950-1
- EN60950-1
- IEC 60950-1
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC
- R&TTE
- Australian AS/NZS 4268
- Laser Safety:
- CDRH Class II
- IEC 60825-1 Class 2
Power Description
- Input Voltage: 3.6 V DC
