Symbol WT4090 Barcode Scanner
Part #: RS409-SR2000ZZR | SKU: SYM26477

Cable, cradle, strap, battery, scanner, charger, holster, mount and more

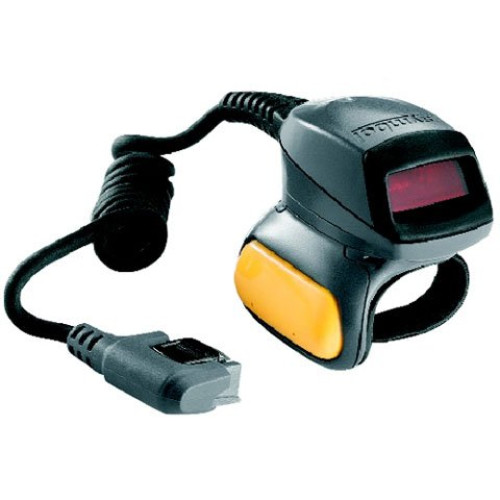

Symbol WT4090 Barcode Scanner

Part Details: Scanner, Ring, SE955 scan engine, Cabled to Wrist Terminal

Additional Information

Manufacturer Symbol
Model Name WT4090

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 116 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Supports RSS
    • Supports RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 4.75" - 8.75"@5 mil - Code 39
    • 8.75" - 14.25"@7.50 mil - Code 39
    • 13.25"@10 mil - Code 39
    • 17.25" - 24.25"@13 mil - UPC
    • 21.50" - 35.75"@20 mil - Code 39
    • 22.25"@40 mil - Code 30
    • 27" - 50.50"@55 mil - Code 39

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RS409
  • Product Name: RS409 Wearable Barcode Reader

Physical Characteristics

  • Height: 1.9"
  • Width: 1.4"
  • Depth: 1.9"
  • Weight (Approximate): 2 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Electrical Safety:
    • UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC
    • R&TT
    • Australian AS/NZS 4268
    • Laser Safety:
    • CDRH Class II
    • IEC 60825-1 Class 2
  • Additional Information: Data Cable

Power Description

  • Input Voltage: 3.6 V DC
