Replacement Part is Available

VC5090, Windows CE 5.0 Professional, 128MB Sdram/192MB Flash, Wireless, QWERTY, 65 key With Tactile Feedback and Audible Key Beep, Heated and Sealed, Function Keys F1-F24, Full Screen: Color 12.1 In. SVGA 800x600, Intel Xscale Pxa270 @ 624 MHz.

Product was successfully added to your shopping cart.

Continue Shopping
20394 Symbol

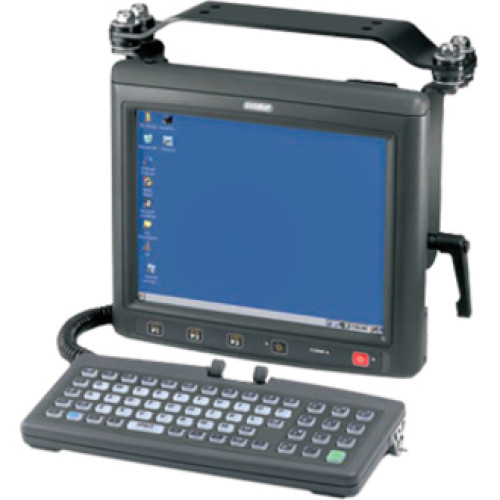

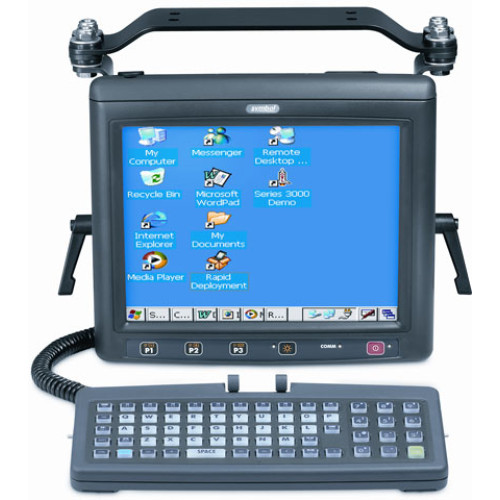

Symbol VC5090 Fixed/Vehicle Mount Data Terminal Part # VC5090-MA0QL0GH6WW

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments. Industrial and military grade specifications for vibration, shock, temperature and sealing ensure reliable year-in and year-out performance - whether your workers are on a forklift, in the freezer, moving through the warehouse or at a fixed station. The VC5090 provides support for terminal emulation, browser-based and custom Windows CE applications that streamline warehouse operations, improve decision making, increase productivity and profitability.

VC5090-MA0QL0GH6WW - Symbol VC5090 Fixed/Vehicle Mount Data Terminal

Part Details: VC5090, Vehicle/Fixed Mount Mobile Computer Full Screen

Additional Information

Manufacturer Symbol
Operating System Windows CE 5.0
Product Condition New
  • Internal antennas and support for external antenna - Ensures robust wireless connectivity, even in challenging environments
  • WPAN: Bluetooth v1.2 - Support for wireless printing and cordless scanning
  • Common Symbol architecture with Intel XScale PXA270 at 624 MHz and Windows CE 5.0 Professional - Easily leverage applications developed for other Symbol rugged mobile computers, support for a wide range of applications, realtime processing and data storage needs
  • Eligible for Service from the Start with Comprehensive Coverage - Contract extends normal wear and tear to cover accidental damage to displays, touchscreens and internal components, reduces repair costs
  • Rugged construction: IP66-sealed aluminum housing and MIL-STD-810F military rating Designed to withstand the most extreme environments, protects your investment, dramatically reduces downtime and repair costs
  • Integrated 802.11a/b/g WLAN - Seamless integration with your existing WLAN for powerful realtime data visibility
  • MSP compatible - Easy and cost-effective centralized remote management
  • Standard heater on all models at no extra cost - Reliable operation in freezer/cold store/outdoor environments as low as -22- F/-30- C

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Vibration: MIL-STD-810F
  • Internal Heater: Yes
  • Keyboard: 65 Key QWERTY
  • Display: 10.5" Color SVGA - Resistive Touch Screen

General Information

  • Manufacturer: Symbol
  • Product Name: VC5090 Vehicle/Fixed-Mount Mobile Computer

Physical Characteristics

  • Dimensions: 12.2" (310mm) x 10.6" (269mm) x 4.5" (114mm)
  • Weight: 14.5 lb (7 kg)


  • I/O Ports:
    • RS-232
    • USB


  • Data Collection Type: Wireless
  • Network Connectivity:
    • WLAN 802.11a/b/g
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Antenna Connectors: Internal
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • CCX
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Environmental Conditions

  • Environmental Sealing: IP66
  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing
  • Electrostatic Discharge (ESD):
    • 20kV Air Discharge
    • 8kV Contact Discharge


  • RAM Memory: 64MB
  • Flash Memory: 192MB

Scanner Options

  • Scanner Option: External

Agency Approvals

  • Agency Approvals: EMC: FCC Part 15 Class B ICES-003 Class B EN 55022 EN 301 489-1 EN 301 489-17 RF: FCC Part 15.247 FCC Part 15.205 FCC Part 15.209 FCC Part 15.203 FCC Part 15.407 FCC Part 15.207 EN 300 328 EN 301 893 RSS-210 ARIB STD-66 ARIB STD-33 T70 T71 Safety: UL 60950-1 CSA C22.2 No. 60950-1 EN 60950-1 IEC 60950-1


  • Additional Information: Expansion Slot: SD Memory Card
Extended Details
