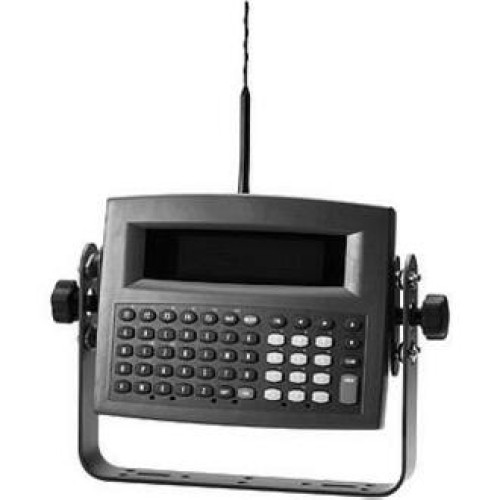

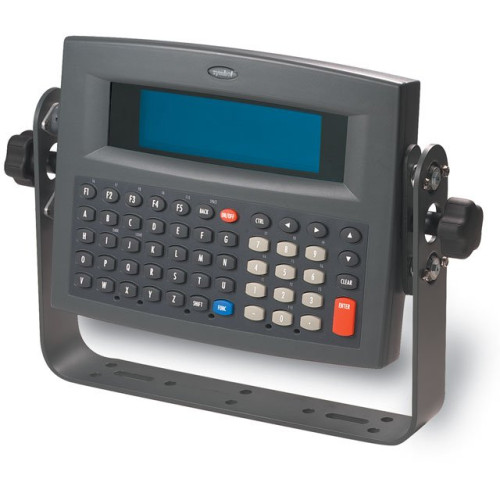

Symbol VRC6940 Data Terminal
Part #: VRC6946-2VV651WW | SKU: SYM16770

The heavy-duty VRC6940 Vehicle Radio Computer Series from Symbol Technologies is precision-engineered to withstand extreme temperatures and the harshest industrial environments. Symbol VRC 6940 Series computers mount directly to forklift trucks enabling operators to wirelessly collect and transmit data to the host from the factory or warehouse floor. These truck-mounted computers facilitate real-time management of material work-in-process and finished goods. Productivity increases because operators receive the latest work instructions and information updates without leaving the truck.

Symbol VRC6940 Data Terminal

Part Details: VRC6946 Vehicle Radio Computer (Spectrum24 11Mbps Radio - T2 Plus, Heated Version, 8-Line Display, 640K Memory, 54-Key Keyboard, 1.2MB NVM, DIV and WW)

Additional Information

Manufacturer Symbol
Model Name VRC6940
Operating System DR DOS

Technical Information

  • Operating System: DOS DR DOS
  • Processor: NEC 80C88 8MHz
  • Vibration: SAE J1455
  • Internal Heater: Yes
  • Keyboard: 54 Key Keypad Integrated
  • Display: - 8 Lines x 40 Characters - Vacuum Flourescent Backlit

General Information

  • Manufacturer: Symbol
  • Product Line: Vehicle Radio Computer (VRC)
  • Product Name: VRC6946 Vehicle Mount Terminal

Physical Characteristics

  • Dimensions: 12" (305mm) x 9" (229mm) x 3" (76mm)
  • Weight: 6.75 lb (3 kg)

Interfaces/Ports

  • I/O Ports:
    • RS-232
    • Scanner

Network

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Operating Frequency: 2.4 Mhz
  • Wireless Security:
    • WEP 40
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
    • Airbeam Safe (VPN)

Environmental Conditions

  • Environmental Sealing:
    • IP65
    • NEMA4
  • Temperature:
    • -22°F (-30°C) to 122°F (50°C) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95% Non-condensing

Other

  • Package Contents:
    • VRC6946 Vehicle Mount Terminal
    • Vehicle Mount Bracket
    • Bracket Knobs
    • External DC Power Cable

Memory

  • RAM Memory: 640KB
  • Flash Memory: 1.2MB

Agency Approvals

  • Agency Approvals: For a complete list of agency approvals, consult reference manuals available for download from manufacturers website.

Scanner Options

  • Scanner Option: External

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Symbol VRC6940 Data Terminal

  • Zebra VRC6940 Accessory
    Part #: 25-38407-01R | SKU: 23685

    Scanner cable, 8ft, for VRC6946, ROHS.
    MSRP: $226.48 Price: $168.53
  • Motorola VRC6940 Accessory
    Part #: CBA-T28-C09ZAR | SKU: 216218

    CABLE UNIVERSAL STYLE UNDECODE USE WITH VRC69XX Only, 9FT CL
  • Symbol VRC6940 Accessory
    Part #: 25-38407-02 | SKU: 16771

    15' Cable Assembly for the VRC 6940
  • Symbol VRC6940 Accessory
    Part #: 25-38411-01 | SKU: 16772

    RS-232 Custom Cable Assembly (for Software Download VRC69XX)
  • Symbol VRC6940 Accessory
    Part #: 25-39385-01 | SKU: 16773

    AC Power supply Cable for Output to VRC 69XX Terminal
