26507 Symbol

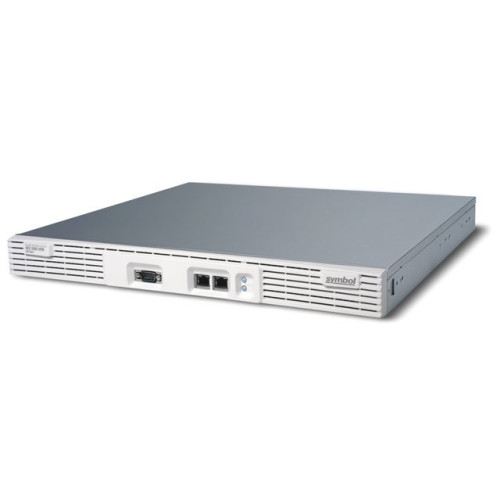

WS-5100-30-WWR - Symbol WS 5100 Wireless Controller

WS 5100, Wireless Switch Kit (30 Ports, Software VS 3.0).
Free Shipping


The Symbol WS 5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS 5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS 5100 supports up to 48 Access Ports and 32 WLANs.
  • Authentication: Access Control Lists (ACLs), 802.1X, Kerberos and Certificate Based Public Key Infrastructure (PKI) - Complete authentication suite validates user identity and authorizes network access
  • Automatic Channel Selection: Automatically selects the best channel based on noise and signal properties - Reduces installation costs by eliminating the need for manual configuration of Access Ports
  • Encryption: WEP, WPA-TKIP, KeyGuardTM MCM, WPA2 and WTLS VPN - Complete encryption suite ensures privacy of data during transmission
  • Flexible software architecture: Supports a heterogeneous device environment - Delivers secure application-specific wireless network access with quality of service
  • Load Balancing and Pre-emptive Roaming: Ensures devices roam before connection quality erodes - Ensures loads are balanced between Access Ports to ensure quality application performance
  • Per Device, Bandwidth Allocation-Weighted Fair Queing: Virtual AP, Power Save Protocol and more - Enables multiple mobile and wireless applications with quality of service when network is congested
  • Radio support: 2.4 GHz/5 GHz frequencies, frequency hopping, direct sequence, OFDM encoding techniques and 802.11a/b/g - Supports the broadest and most flexible radio technology, ability to accommodate new coverage, radio types, channels and spectrum
  • Secure architecture: Designed for maximum network security - A single point of entry that can be easily secured
  • Security with mobility: 802.11i and Symbol's mobility features ensure security - and performance - Highest level of data and network protection without sacrificing fast roaming
  • Upgradeable Access Ports: Add new functionality quickly and easily via the WS5100 - Cost-effective implementation of the latest features
  • Upgradeable standards support: Ability to easily and cost-effectively support future 802.11 standards - Delivers outstanding investment protection - no forklift upgrade required to implement new standards and expanding infrastructure
  • Virtual AP: VLAN support provides complete control of broadcast traffic - Ensures broadcast traffic reaches only intended devices

Additional Information

Manufacturer Symbol

General Information

  • Manufacturer: Motorola
  • Product Name: WS-5100 Wireless Switch

Physical Characteristics

  • Form Factor: 1U
  • Dimensions: 1.73" (44mm) x 16.8" (427mm) x x 15.93" (405mm)
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces:
    • RS-232 Console
    • 6 x RJ-45 10/100/1000 Ethernet
  • Additional Information: License version v.3.0

Wireless Network

  • Wireless Security: WPA2-CCMP802.11iRADIUSIPSec VPN GatewaySecure Guest Access ProvisioningAdvanced wireless intrusion detectionDES 3DESAESAuthentication:Access Control Lists (ACLS) 802.1x/EAP-transport layer security (TLS) Tunneled transportlayer security (TTLS) Protected EAP (PEAP) Kerberos Integrated AAA/RADIUS server with native support for EAP-TTLS and EAP-PEAP Transport encryption: WEP 40/128 (RC4) KeyGuard WPA-TKIP WPA2-CCMP (AES) WPA2-TKIP
  • WLAN Features:
    • Supports 32 WLANs
    • Multi-ESS/BSSID Traffic Segmentation
    • VLAN to ESSID Mapping
    • Power Save Protocol Polling
    • Pre-emptive Roaming
    • Congestion Control With Bandwidth Allocation
    • 30 Ports
    • Load Balancing
  • Packet Filtering:
    • L2/3/4 Stateful Packet Analysis
    • Network Address Translation (NAT)
  • Optimized Wireless QoS:
    • 802.11 Traffic Prioiritization
    • Power Save Protocol (PSP) Integration
    • Layer 1-4 Packet Classification
    • 802.1p VLAN Priority
    • DiffServ/TOS
  • Management:
    • Authentication - Radius Client
    • Command Line Interface (Serial, Telnet)
    • Command Line Interface: Telnet, SSH, Serial port
    • Secure Web Based GUI (SSL)
    • Telnet Server
    • SNMP v1/v2
    • TFTP Client
    • MIBs - MIB-II

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 50 To 10000ft - Operating
    • 50 To 35000ft - Storage

Packet Forwarding

  • Options:
    • 802.1D-1999 Ethernet Bridging
    • 802.11 - 802.3 Bridging
    • 802.1Q VLAN Tagging & Trunking
    • Proxy ARP
    • IP Packet Steering-redirection

Power Description

  • Input Voltage Range: 100V AC to 240 V AC
  • Current:
    • 6A @ 115V AC - Input
    • 3A @ 230V AC - Input

Agency Approvals

  • Agency Approvals: IEEE 802.11iFCCIndustry CanadaCE VCCI C-Tick BSMIUL 1950 cULVDE GS DENAN CB CertRoHS
