21667 Symbol

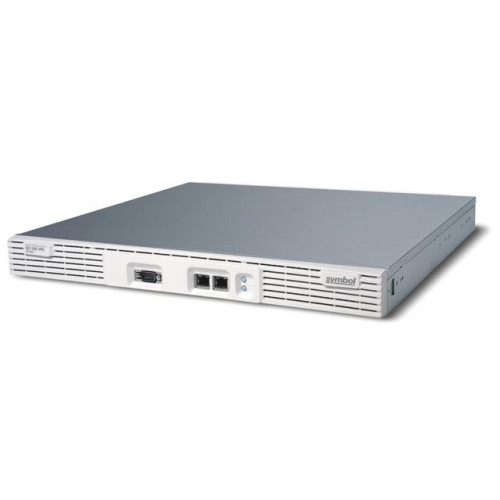

WS-5100-R210-42WWR - Symbol WS 5100 Wireless Controller

WS 5100, Wireless Switch (V 2.1, 42 Ports).
InStock
Free Shipping

Description

The Symbol WS 5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS 5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS 5100 supports up to 48 Access Ports and 32 WLANs.
  • Authentication: Access Control Lists (ACLs), 802.1X, Kerberos and Certificate Based Public Key Infrastructure (PKI) - Complete authentication suite validates user identity and authorizes network access
  • Automatic Channel Selection: Automatically selects the best channel based on noise and signal properties - Reduces installation costs by eliminating the need for manual configuration of Access Ports
  • Encryption: WEP, WPA-TKIP, KeyGuardTM MCM, WPA2 and WTLS VPN - Complete encryption suite ensures privacy of data during transmission
  • Flexible software architecture: Supports a heterogeneous device environment - Delivers secure application-specific wireless network access with quality of service
  • Load Balancing and Pre-emptive Roaming: Ensures devices roam before connection quality erodes - Ensures loads are balanced between Access Ports to ensure quality application performance
  • Per Device, Bandwidth Allocation-Weighted Fair Queing: Virtual AP, Power Save Protocol and more - Enables multiple mobile and wireless applications with quality of service when network is congested
  • Radio support: 2.4 GHz/5 GHz frequencies, frequency hopping, direct sequence, OFDM encoding techniques and 802.11a/b/g - Supports the broadest and most flexible radio technology, ability to accommodate new coverage, radio types, channels and spectrum
  • Secure architecture: Designed for maximum network security - A single point of entry that can be easily secured
  • Security with mobility: 802.11i and Symbol's mobility features ensure security - and performance - Highest level of data and network protection without sacrificing fast roaming
  • Upgradeable Access Ports: Add new functionality quickly and easily via the WS5100 - Cost-effective implementation of the latest features
  • Upgradeable standards support: Ability to easily and cost-effectively support future 802.11 standards - Delivers outstanding investment protection - no forklift upgrade required to implement new standards and expanding infrastructure
  • Virtual AP: VLAN support provides complete control of broadcast traffic - Ensures broadcast traffic reaches only intended devices

Additional Information

Manufacturer Symbol

General Information

  • Manufacturer:
  • Product Line: WS-5100
  • Product Name: WS-5100 42-Port Wireless Switch

Physical Characteristics

  • Form Factor: 1U
  • Dimensions:
    • 43.9mm (2")429mm (17") x 404.6mm (16")
    • 43.9mm (2") x 429mm (17") x 404.6mm (16")
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces:
    • 1 x RS-232 Console
    • 42 x 10/100/1000
  • Additional Information: Software Version 2.1 Supports up to 48 Access Ports and 32 WLANs Automatically selects the best channel based on noise and signal properties

Wireless Network

  • Wireless Security: WPA-TKIP KeyGuard MCM WPA2 Pre-Shared Keys (PSK) WTLS VPN Access Control Lists (ACLs) Kerberos and Certificate Based Public Key Infrastructure (PKI) Multi-ESS/BSSID traffic segmentation VLAN to ESSID mapping IEEE 802.1x/EAP Transport Layer Security (TLS) Tunneled Transport Layer Security (TTLS) Protected EAP (PEAP) WEP 40/128 (RC4) AES
  • WLAN Features: 42-Ports
  • Packet Filtering:
    • Network Address Translation (NAT)
    • L2/3/4 Stateful Packet Analysis
  • Management:
    • Command Line Interface (Serial, Telnet)
    • Secure Web Based GUI (SSL)
    • SNMP v1/v2
    • Syslog
    • TFTP Client
    • Simple Network Time Protocol (SNTP)
    • Text-Based Switch Configuration Files
    • DHCP - Client/Server/Relay
    • Authentication - Radius Client
    • Wireless Switch specific monitoring and configuration

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 16 To 3048m - Operating
    • 16 To 10600m - Storage

Power Description

  • Input Voltage Range: 100V AC to 240 V AC
  • Frequency Band/Bandwidth:
    • 2.4GHz
    • 5GHz
  • Current:
    • 6A @ 115V AC -
    • 3A @ 230V AC -

Agency Approvals

  • Agency Approvals: IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.1x IEEE 802.1Q IEEE 802.1p Safety Certifications: FCC (Art.15, part B) Industry Canada CE VCCI C-Tick BSMI EMI Compliance: UL 1950 cUL (Canada) VDE GS DENAN (Japan) CB Cert

Warranty

  • Manufacturer Warranty: 1 Year(s)
