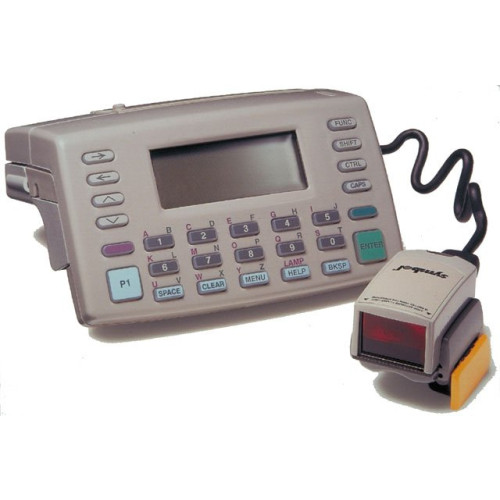

Symbol WS 1200-LR Mobile Computer
Part #: WS1200-LR00 | SKU: SYM17287

Symbol Technologies' WSS 1000 Wearable Scanning System empowers users to achieve totally new levels of productivity and accuracy. At the same time advanced ergonomics make the system easy to use and comfortable to wear. Never before could scanning portable computing and wireless networking be performed while the user's hands remained totally free for handling packages products inventory or materials. The WSS 1000 System also represents breakthroughs in miniaturization performance and data transmission. Already its all-encompassing capabilities are changing the definition of productivity and ease of use in warehousing transportation-logistics manufacturing retailing and other industries. The WSS 1000 System consists of two components. The RS 1 Ring Scanner is worn on the index finger and activated by pointing the finger at the barcode while pressing the thumb against a trigger at the base of the finger. Scanning is performed by pointing the finger at the barcode and activating the scanner by pressing the thumb against a trigger at the base of the finger. The RS 1 Ring Scanner is the smallest wearable laser scanner in the world weighing only 1.7 ounces-48 grams and standing just.9 inches-23 mm high. The WSS 1000's computer is worn on the forearm and includes a CPU display keyboard battery pack and optional batch or wireless communications.

Symbol WS 1200-LR Mobile Computer

Part Details: WS 1200-LR, Wearable Long Range Scanner (with Plastic Cap, Trigger, Cable and Glove)

Need a different version of the Symbol WSS 1000 Mobile Computer? View all 5 configurations

Additional Information

Manufacturer AIDC	Symbol
Model Name	WSS 1000
Style	Wearable

Symbol WSS 1000 Specs (pdf)

Technical Information

Scan Rate: 35 scan/s
Connectivity Technology: Cable
Light Source: Laser
Maximum Scan Resolution: 15 mil
Depth of Field:
- 10" - 20"@10 mil
- 5" - 40"@15 mil
- 5" - 50"@20 mil
- 10" - 90"@40 mil
- 10" - 100"@55 mil
- 60" - 15 ft@70 mil
- 70" - 20 ft@100 mil

General Information

Product Type: Wearable Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: WS1200
Product Name: WS1200 LR Barcode Reader

Physical Characteristics

Color: Gray
Weight (Approximate): 3.50 oz

Other

Package Contents:
- WS1200-LR Barcode Reader
- Replaceable Plastic Cap
- Titan trigger cable with finger strap
- Personal attachment glove
- WS1200-LR Barcode Reader
- Replaceable Plastic Cap
- Titan trigger cable with finger strap
- Personal attachment glove
Certifications & Standards:
- Laser Class:
- CDRH Class 2, IEC 825-I Class 2
- Electrical:
- UL1950, CSA C22.2 No 950 and EN60950

Power Description

Input Voltage: 5 V DC
