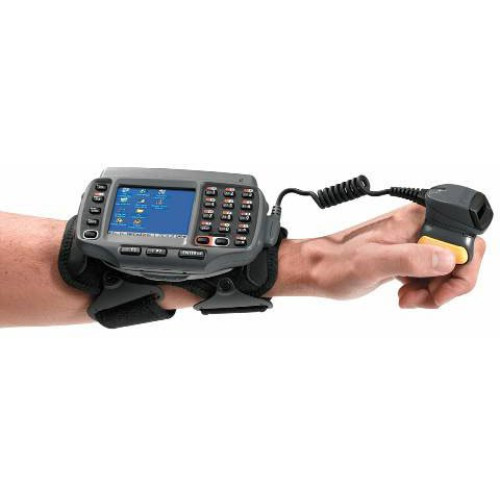

Symbol WT4090 Mobile Computer

Symbol WT4090 Mobile Computer
Part #: WT4090-N2H1GER | SKU: SYM70397

The WT4090 is the latest wearable data terminal from Motorola. The WT4090 features 802.11a/b/g wireless connectivity, the Windows CE operating system and a standard battery.

Symbol WT4090 Mobile Computer

Part Details: WT4090, Wearable terminal with WLAN 802.11a/b/g, 2-color keypad, 128/128MB, color non-touch screen, Windows CE 5.0 Professional, extended battery. Wrist mount & Scanner required. See accessories or (Part# WT4090-N2S1GER-KIT)
Need a different version of the Symbol WT4090 Mobile Computer? View all 12 configurations

Additional Information

IP Rating IP54
Interface Options Bluetooth, Wi-Fi.
Keypad 23 Keys
Manufacturer AIDC Symbol
Model Name WT4090
Operating System Windows CE 5.0 Pro
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA270 (520 MHz)
RAM Memory 128 MB
Style Wearable

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: WT4000
  • Product Name: WT4000 Wearable Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • 15 kV DC Air Discharge
    • 8 kV DC Indirect Discharge

Physical Characteristics

  • Height: 3.7"
  • Width: 5.7"
  • Depth: 1"
  • Weight (Approximate): 11.30 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • WT4000 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start Guide
    • WT4000 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Environmental sealing: IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950/IEC 60950-1
    • EMC:
    • FCC Part 15 Subpart B
    • ICES-003 Class B
    • EN 60601-1-2
    • EN 61000-3-2
    • EN 61000-3-3
    • CISPR 22 Class B
    • CISPR 24
    • RF:
    • FCC Parts 15.247
    • FCC Parts 15.407
    • FCC Parts 15.205
    • FCC Parts 15.207
    • FCC Parts 15.209
    • FCC Parts 15.203
    • EN 300 328
    • EN 301 893
    • RSS-100
    • RSS-210
    • ARIB STD-66 & 33
    • ARIB STD-T70 & 71
  • Additional Information:
    • Keypad Overlay: Legacy 2-color alpha
    • Tumble: 500 one-half meter tumbles at room temperature (1,000 drops)
    • OS Language: English

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Battery Information

  • Battery Capacity: 4600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 23

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 5.0 Professional
Extended Details
