Tatung CRT Specs

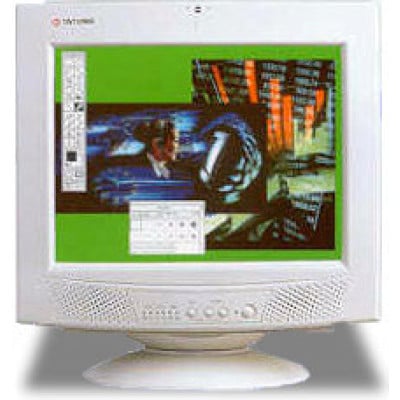

15" Computer Monitor - C5GSE
Tatung's C5GSE Series is a new digital design aimed at corporate and SOHO markets. The use of advanced production technology and proprietary CRT contributes to the consistent high quality of the product. The third generation digital control system is already pre-programmed for new, VESA 85Hz, high and refresh modes.
User Benefits:
- Multi-sync design for compatibility with all PC systems.
- Digital design for future-proofing against new developments in display standards.
- DDC 1/2B Plug & Play for simplified installation and configuration.
- Compatibility with both established and new 85Hz VESA display standards.
- Anti-glare tube for better screen visibility.
- Anti-static coating for reduced dirt build-up.
- Digital control for convenience and ease of use.
- Low Radiation.
- Worldwide approvals for total assurance regarding product safety.
- Audio output (optional).
- Microphone option.
| Screen Size | 15" FST (13.7" visible) | |
| Display Area | 279 x 210mm | |
| CRT Dot Pitch | 0.28mm | |
| Treatment | Anti-glare, anti-static (options) | |
|
|
||
| Scan Rate | 30 ~ 57kHz | |
| Refresh Rate | 50 ~ 120Hz | |
|
|
||
| Maximum | 1024x768 NI | |
| Resolution at (refresh rate) | 70 Hz | |
|
|
||
| Recommended | VESA 800x600 NI | |
| Resolution at (refresh rate) | 85 Hz, flicker-free | |
|
|
||
| Control System | Digital Control, with LED Indicators | |
|
|
||
| Control Keys | Power, Up, Down, Select | |
|
|
||
| User Controls | Contrast, Brightness, Horizontal Centring, Horizontal width, Vertical Centring, Vertical Height, Pincushion, Trapezoid, Parallelogram, Degauss(or Zoom), Recall | |
|
|
||
| Features | Multi-sync, auto-sizing, full-scan, VESA DPMS power saving, Comply with Emergy 2000, DDC 1/2B, Plug&Play, self-test pattern, universal power supply | |
|
|
||
| Low Radiation | MPRII and TCO 99 (option) | |
|
|
||
| Approvals | CE, TUV, EN60950, UL1950, CSA22.22#950, EN50081-1, EN50082-1, VCCI, DHHS, ISO9241-3, SEMKO, NEMKO, DEMKO, FEMKO, FCC Class B, C-Tick, ROV Anlage III | |
|
|
||
| Plug & Play | DDC 1/2B, PC 98 Compliant | |
|
|
||
| Dimensions (W)x(H)x(D) | 13.2" x 14.6" x 14.8" (with base) | |
| Net Weight | 26 lbs | |
|
|
||
| Audio | Built-in speakers (1.5W/Channel) | |
|
|
||
| Specifications subject to change without prior notice. | ||
