| Manufacturer AIDC | Tripp-Lite |
|---|---|
| Model Name | UPS |
General Information
- Product Type: Line-interactive UPS
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite

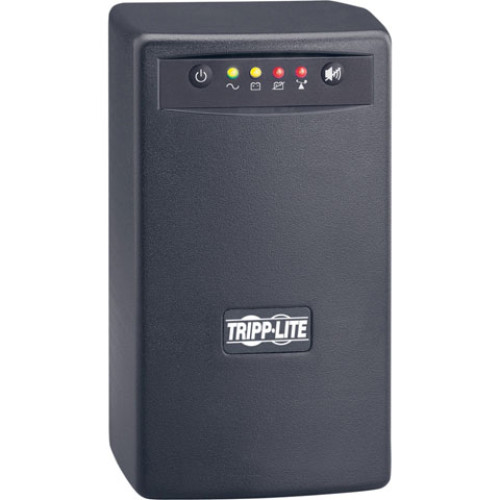

- Product Name: SmartPro 550VA UPS
- Product Line: SmartPro
- Packaged Quantity: 1 Each
Technical Information
- Receptacles: 3 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Protection Type: Surge
- Cord Length: 6 ft
- Dataline Protection: RJ-11
Physical Characteristics
- Height: 8.5"
- Width: 5"
- Depth: 6.5"
- Form Factor: Tower
- Weight (Approximate): 14.40 lb
- Color: Gray
Interfaces/Ports
- USB: Yes
Other
- Country of Origin: China
- Package Contents:
- SMART550USB UPS System
- USB and Telephone interconnection cables
- Instruction manual with warranty information
- SMART550USB UPS System
- USB and Telephone interconnection cables
- Instruction manual with warranty information
- Recycled: No
- Recycled Content: 0%
- Post-consumer-waste%: 0%
- Assembly Required: No
- Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
- Software Included: PowerAlert Software
- Additional Information:
- SMART550USB line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL modem line surge suppression
- Supports entry level PC systems for up to 30 minutes during power failures to enable a safe system shutdown
- Supports a max load of 550VA/300 watts for 5 minutes and a half load of 275VA/150 watts for 17 minutes
- Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power
- Attractive stealth black tower configuration
- Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord (all NEMA 5-15)
- USB port enables unattended shutdown without data loss during extended power failures, includes USB cable
- PowerAlert software available via free download from www.tripplite.com
- Built-in RJ11 phone suppression jacks protect modem, fax machine or other peripheral with a dialup or DSL line phone connection
- Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
- 550VA / 300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
- Supports battery replacement via built-in access panel
- Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more
- 2 year manufacturers warranty
- $200,000 Connected Equipment Insurance (USA & Canada Only)
Power Description
- Load Capacity (VA): 550 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 480 J
- Waveform Type: Pulse-width Modulated Sine Wave
Battery Information
- Maximum Battery Recharge Time: 4 Hour
- Backup/Run Time (Half Load): 15 Minute
- Backup/Run Time (Full Load): 4 Minute
- Battery Life: 6 Year
- Battery Chemistry: Sealed Lead Acid
Controls/Indicators
- Status Indicators: 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
Warranty
- Limited Warranty: 3 Year
Management
- Alarm: On Battery
Environmental Conditions
- Temperature: 122°F (50°C)
