General Information
- Product Type: Surge Suppressor/Protector
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite
- Product Model: TLP707TEL

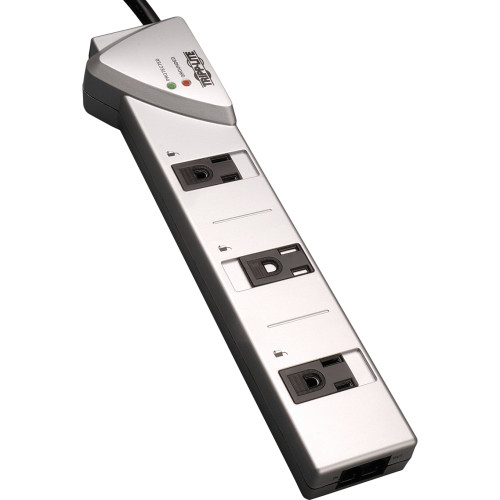

- Product Name: Protect It TLP707TEL 7 Outlets Surge Suppressor
Technical Information
- Receptacles: 7 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Dataline Protection: RJ-11
- Protection Type: Full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Physical Characteristics
- Height: 2"
- Width: 1.6"
- Depth: 10.9"
- Power Cord/Cable: 7 ft
- Weight (Approximate): 1.25 lb
- Color: Metallic Silver
- Form Factor: Floor-mountable
Other
- Package Contents:
- Protect It TLP707TEL 7 Outlets Surge Suppressor
- TLP707TEL surge suppressor
- 6-ft. RJ11 cable
- Instruction manual and warranty information
- Protect It TLP707TEL 7 Outlets Surge Suppressor
- TLP707TEL surge suppressor
- 6-ft. RJ11 cable
- Instruction manual and warranty information
- Certifications & Standards:
- UL1449 (let through rating 330V)
- IEEE 587 Category A and B
- UL1363
- cUL
- FCC Part 68
- UL497A
- Compatibility: Ideal for home computers, TV/VCR/DVD players, stereos and lamps
- Additional Information:
- Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
- Space-saving right angle input plug
- Includes built-in sliding outlet safety covers
- Automatic cord management
- 14 gauge, SJT Input cord
Power Description
- Current: 15 A Line Current
- Surge Energy Rating: 1080 J
- Input Voltage: 120 V AC
- Power Handling: 1.80 kVA
- Output Voltage: 120 V AC
- Circuit Breaker: 15 A Resettable
- Filtering: EMI/RFI Filtering Up to 20dB
- Frequency: 50 Hz or 60 Hz
- Power Switch: On/Off
Controls/Indicators
- Status Indicators:
- Protection present
- Grounded
Warranty
- Limited Warranty: Lifetime
