Additional Information
| Included Features | SD Flash Memory Slot |
|---|---|
| Interface Options | Ethernet, Parallel, Serial (RS-232), USB |
| Manufacturer AIDC | TSC |
| Max Roll Outer Diameter | 8.2 |
| Model Name | TTP-384M |
| Print Resolution | 300 dpi |
| Print Speed | 4 ips |
| Printer Type | Industrial |
| Ribbon Core Size | 1 inch |

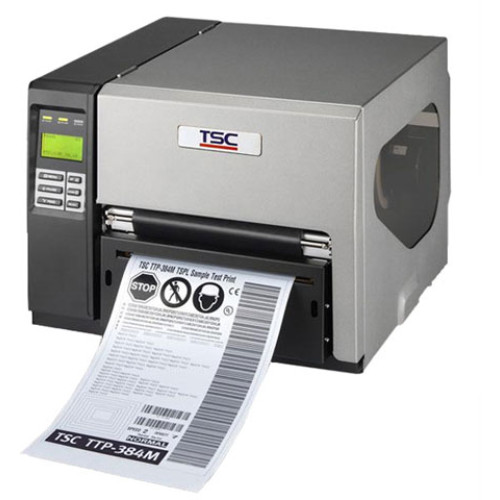

TSC TTP-384M Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 8.64"
- Recommended Use: Label Print
- Features: Real Time Clock
- Barcode Symbology Supported:
- Code 39
- Code 93
- Code 128
- UCC
- Code 128-A
- Code 128-B
- Code 128-C
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- EAN 128
- UPC-A
- UPC-E
- UPC 2 and 5 Digit Addendums
- MSI
- Plessey
- POSTNET
- RSS Stacked
- Code 11
- GS1 DataBar
- PDF-417
- Maxi Code
- Data Matrix
- QR Code
- Aztec Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: TTP
- Brand Name: TSC Auto ID
- Manufacturer: TSC Auto ID Technology Co., Ltd
- Product Model: TTP-384M
- Product Name: TTP-384M Label Printer
Physical Characteristics
- Height: 13.2"
- Width: 17.3"
- Depth: 19.8"
- Form Factor: Desktop
- Weight (Approximate): 51.15 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Platform Supported: PC
- Package Contents:
- TTP-384M Label Printer
- Software and Driver Cd
- USB Port Cable
- Ribbon Take-up Paper Core
- Power Cord
- TTP-384M Label Printer
- Software and Driver Cd
- USB Port Cable
- Ribbon Take-up Paper Core
- Power Cord
- Certifications & Standards:
- FCC Class A
- CE Class A
- UL
- CUL
- TUV/Safety
Media Types & Handling
- Maximum Label Width: 9.50"
- Maximum Label Length: 50"
- Media Type:
- Continuous Label
- Die-cut Label
- Fanfold
- Tag
- Notched
- Perforated Label
- Black Mark
- Media Thickness: 10 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Cover Open Sensor
- Out Of Ribbon Sensor
- Label Core Size: 3"
- Maximum Roll Diameter: 8.20"
Memory
- Standard Memory: 32 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Display & Graphics
- Display Screen Type: LCD
Warranty
- Limited Warranty: 2 Year
Fonts & Emulation
- Language Emulation: TSPL-EZ
