99-040A010-42LF - TSC TTP-225 Bar code Printer

TTP-225, 2" wide thermal transfer label printer, 203 dpi, 5 ips (navy) includes real-time clock, USB & Ethernet Ports + LCD display
InStock
$575.00 $402.50
Ships Today
Free Shipping
- +

Description

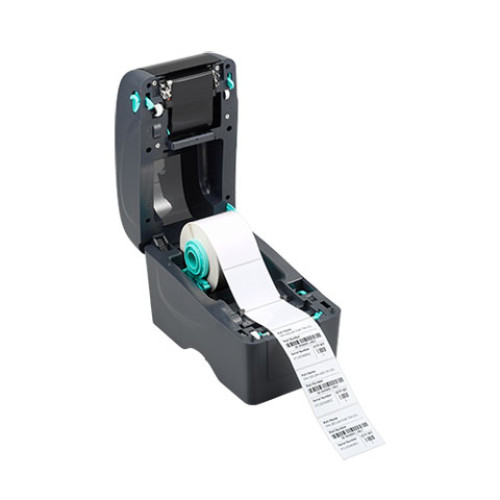

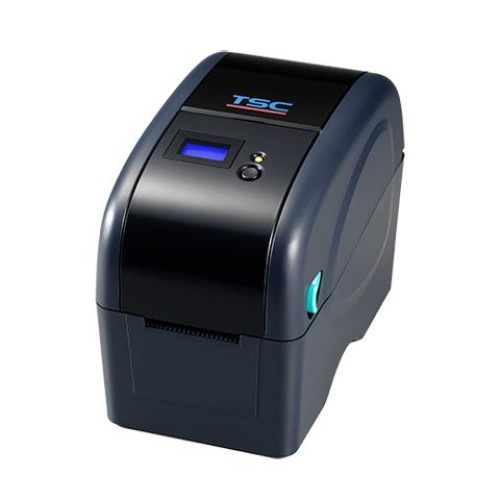

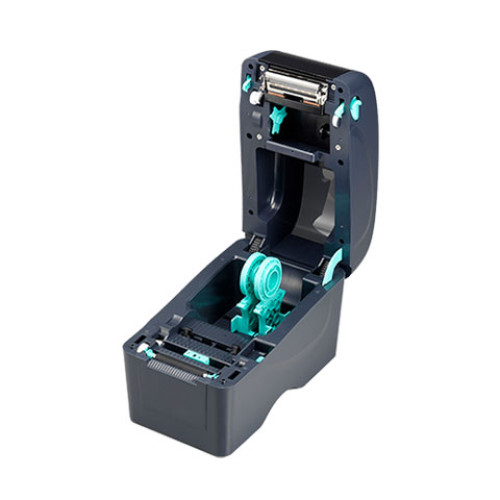

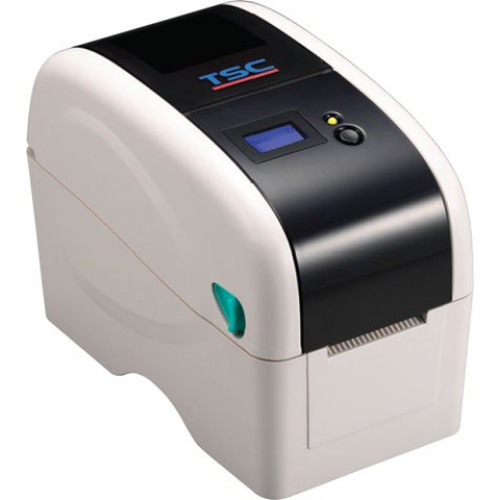

The TSC TTP-225 is the first low cost thermal transfer compact 2" desktop printer to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.
  • Small size \"\" space saving design
  • Thermal transfer Print Technology
  • Uses industry standard ribbons and media
  • High quality double walled clamshell design
  • Easy media loading
  • Head-up sensor
  • 8MB DRAM, 4MB FLASH memory
  • Serial and USB 2.0 connectivity standard, Ethernet optional
  • Options include LCD display, keyboard, cutter, peel
  • Standard industry emulations right out of the box including Eltron and Zebra language support

Additional Information

Print Speed 5
Printer Type Desktop
Print Method Thermal Transfer
Print Resolution 203 dpi
Included Features microSD Flash Memory Slot
Interface Options Ethernet
Maximum Print Width 2.13
Item Condition New
Manufacturer TSC

Recommended Labels

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC-5 Digits Add-on
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-225
  • Product Name: TTP-225 Label Printer

Physical Characteristics

  • Height: 7"
  • Width: 5.5"
  • Depth: 9.5"
  • Form Factor: Desktop
  • Weight (Approximate): 5.40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 92.9 mil
  • Maximum Label Length: 90"
  • Media Type:
    • Label
    • Tag
    • Gap
    • Black Mark
    • Notch
    • Wristband
    • Die-cut Label
    • Fanfold
    • Notched
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
