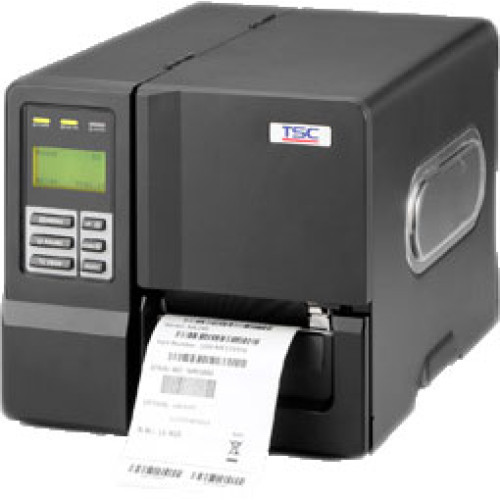

TSC ME340 Barcode Label Printer
Part #: 99-042A011-44LF | SKU: TSC146088

The TSC ME340 series of industrial thermal label printers was designed to offer the right features at the best value in the industry. The TSC ME340 features a small footprint and low profile design that fits where larger industrial printers do not. Its quiet operation and fast label throughput is equally at home, in the office or shop floor environment. The printers all-metal construction and die-cast aluminum print engine is durable enough to withstand the toughest production environments. The TSC ME340, based on the same platform as the ME240, offers 300-dpi (12 dots/mm) resolution, 4 inches per second speed and a full 8" roll media handling capability.

TSC ME340 Barcode Label Printer

Part Details: ME340, 300 dpi, Thermal transfer, 4 ips, 8MB DRAM, LCD DISPLAY, Real-time clock, Ethernet, USB, USB-AHOST, SD FLASH, SERIAL, 450 METER RIBBONS, TSPL-EZ LANG, US POWER CABLE, USB CABLE

Additional Information

Included Features SD Flash Memory Slot
Interface Options Ethernet, Serial (RS-232), USB
Manufacturer TSC
Max Label Width 4
Max Roll Outer Diameter 8
Model Name ME340
Print Resolution 300 dpi, 305 dpi
Print Speed 4 ips
Printer Type Industrial
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC-5 Digits Add-on
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: ME340
  • Product Name: ME340 Label Printer

Physical Characteristics

  • Height: 10.2"
  • Width: 11.3"
  • Depth: 17.1"
  • Form Factor: Desktop
  • Weight (Approximate): 24.25 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • ME340 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • 2 x Media Core Adapter 3"
    • ME340 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • 2 x Media Core Adapter 3"
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 40"
  • Media Type:
    • Label
    • Large Shipping Label
    • Wristband
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notched
  • Media Thickness: 11 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
