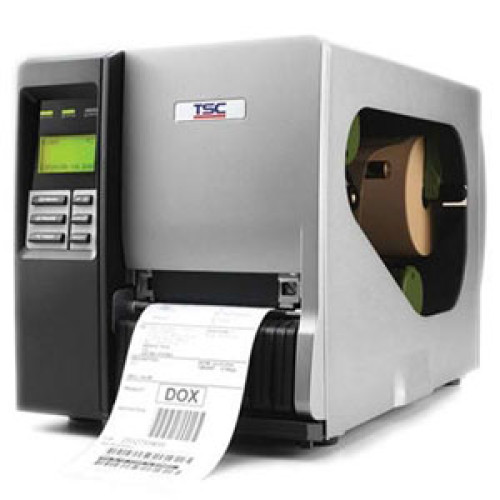

TSC TTP-346M Barcode Label Printer
Part #: 99-047A004-00LF | SKU: TSC207837

Offering 300 dpi resolution, the TSC TTP-346M die-cast aluminum label printer is designed to meet the most demanding bar-coding and identification needs. With its high resolution and durability, the TTP-346M is ideal for mission-critical printing applications either on-demand or batch. The TTP-346M operates at print speeds up to 8 ips. Standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB Flash memory, and an SD memory-card slot for adding up to 4 GB of additional Flash storage. The TTP-346M accommodates ribbons 600 meters in length, along with a full 8.2-inch OD media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor.

TSC TTP-346M Barcode Label Printer

Part Details: TTP-346M, Printer, Thermal transfer, 300 dpi, 8 IPS, 4.09 inch Wide, 8.2 outer diameter, Real-time clock, ID, USB, Includes Peel Off Kit (Peel Off Sensor and Rewinders), Internal Internet.

Additional Information

Included Features SD Flash Memory Slot
Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer TSC
Max Label Width 4.6
Max Roll Outer Diameter 8
Model Name TTP-346M
Print Resolution 300 dpi
Print Speed 8 ips
Printer Type Industrial
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-346M Pro
  • Product Name: TTP-346M Pro Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-346M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • TTP-346M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC
    • CB

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 76"
  • Media Type:
    • Label
    • Ticket
    • Continuous Label
    • Die-cut Label
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
