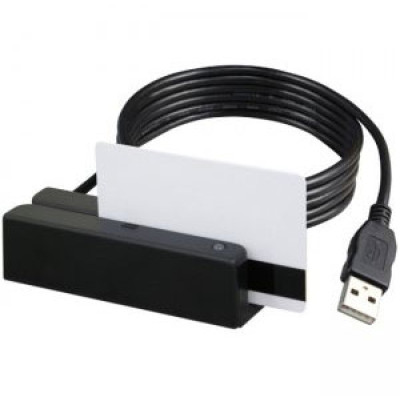

UIC MSR213U Credit Card Reader

Read and convert magnetic stripe data to USB (Virtual COM) or USB HID/USB keyboard interface
Firmware downloadable
Read magnetic stripe cards conform to ISO 7811, AAMVA and custom data format
Manual swipe, bi-directional with USB interface output
Read high and low coercivity magnetic stripes (300- 4000 Oe)
15KV air ESD protection
Reliable for over 1M swipes life
LED and beeper for reading status ELECTRICAL

• Power Requirement: +5VDCx10% from USB Port
• Power Consumption: 35mA Max. in normal condition
• Interface: USB HID or USB keyboard emulation interface

MECHANICAL

• Body Material: ABS 94V-0
• Dimensions: 3.94"(100 mm) L x 1.34"(34 mm) W x 1.10"(28 mm) H
• Weight: Approx. 4.2 ounces (120 g)
• Connector: USB Type A Plug
• Card Handling Method: Manual swipe, bi-directional

ENVIRONMENTAL

• Operation Temperature: 14AÁ¸F to 122AÁ¸F (-10AÁ¸C to +50AÁ¸C)
• Storage Temperature: -22AÁ¸F to 158AÁ¸F (-30AÁ¸C to +70AÁ¸C)
• Operation Humidity: 10% to 90%
• Storage Humidity: 10% to 90%

AGENCY APPROVAL

• FCC Class B, CE Class B, European RoHS

PERFORMANCE

• Read Card Format
• • Track 1: Bit Density 210 bpi
  • Track 2: Bit Density 75 bpi
  • Track 3: Bit Density 210 bpi
• Card Types: Magnetic cards as per ISO7810, 7811, AAMVA
• Read Capability: Magnetic stripe - dual or triple track of low/high coercivity (300~4000 Oe)
• Test Card Types
• • Standard card: Read Speed 5~55 ips
  • Jitterx15%: Read Speed 5~50 ips
  • Amp.60%: Read Speed 5~50 ips
• Card Thickness: 0.76 x0.08mm
• Error rate: <0.5%
• Magnetic Head Life: 1 M Swipe
