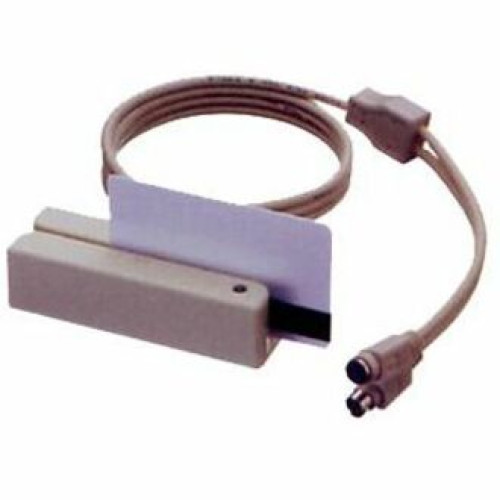

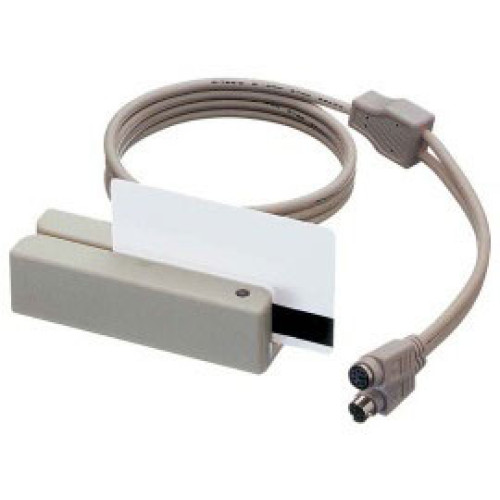

MSR210D Credit Card Reader
Part #: MSR210D-12AHBNR | SKU: UIC148182

The MSR210D single, dual, or triple track versions conforms to International Standard Organization 7811 standard, AAMVA and Department of Motor Vehicles cards. It has a user-friendly setting and it is compact that can be mounted on keyboard or any flat surface. The MSR 210D has programmable data output and has the firmware downloadable functionality.

MSR210D Credit Card Reader

Part Details: MSR reader, PS2 keyboard interface, dual tracks 1 & 2, buzzer/LED, Beige

Need a different version of the MSR210D Credit Card Reader? View all 4 configurations

Additional Information

Manufacturer	UIC
Model Name	MSR210D

UIC MSR210D Specs (pdf)

General Information

Product Type: Magnetic Stripe Reader
Brand Name: Uniform Industrial
Manufacturer: Uniform Industrial Corporation
Product Model: MSR210
Product Name: MSR210 Magnetic Stripe Reader

Technical Information

Magnetic Stripe Track Configuration: Dual Track
Minimum Swipe Speed: 5 in/s
Maximum Swipe Speed: 55 in/s
Magnetic Head Life: 500 Swipe

Physical Characteristics

Height: 1.1"
Width: 1.3"
Color: Beige
Length: 3.9"
Weight (Approximate): 4.23 oz

Interfaces/Ports

Interfaces/Ports: PS/2

Other

Certifications & Standards:
- FCC Class A
- CE
- UL
- cUL

Environmental Conditions

Humidity: 10% to 90% Operating
Temperature: 14°F (-10°C) to 131°F (55°C) Operating

Power Description

Input Voltage: 5 V DC

Extended Details

MSR210D Credit Card Reader Part #: MSR210D-12AHBNR | SKU: UIC148182
