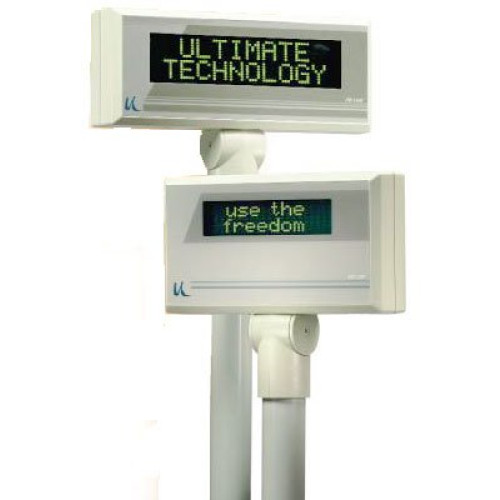

Ultimate Technology PD1100 Customer/Pole Display
Part #: PD1100S-11343 | SKU: ULT7979

The PD1100 is easy-to-use both for employees and customers. The pole display rotates a full 360 degrees and tilts 20 degrees. The PD1100 also features flashing and scrolling text as an option. Each unit is assembled in the USA.

Ultimate Technology PD1100 Customer/Pole Display

Part Details: PD1100, 2x20 display, 10.5 mm character height, with serial interface. Includes 9-pin cable & power supply. Color: black.

Additional Information

Manufacturer Ultimate Technology
Model Name PD1100
Product Condition New

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 5.5mm x 10.5mm
  • Character Pitch: 7.4 mm
  • Interfaces/Ports: RS-232
  • Connectors: DB-9 Female Connector
  • Input Voltage: 9 V DC

General Information

Physical Characteristics

  • Dimensions:
    • 23" (584mm) x 8.75" (222mm) x 1.80" (46mm)
    • 23" (584mm) x 8.75" (222mm) x x 1.80" (46mm)
  • Weight: 2.50 lb (1.13 kg)
  • Color: Black

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 90% Non-condensing

Agency Approvals

  • Agency Approvals: FCC Class A, Part 15
