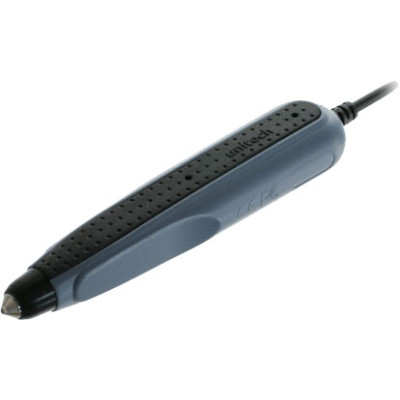

Unitech MS100 Barcode Scanner

Unitech MS100 Barcode Scanner

Unitech MS100 Barcode Scanner

The Unitech MS100 barcode wand is a cost effective solution for low-volume barcoding applications. The advanced optics and electronic design convert barcode labels into a high-quality digital signal. Its shape gives the MS100 the comfort and handling of a conventional ink pen. Just drag the tip of the wand across the barcode in either direction and listen for the "good read" beep to let you know the data has been successfully captured.
Starting at: MSRP: $139.00 Price: $90.35
See all options
Unitech MS100 Specs Unitech MS100 Specs (pdf)

Optical & Performance

Light Source 650 ~ 660nm Red LED
Receiving Device Photo Sensor
Depth of field 0.04"
Resolution 5 mils
Print Contrast 0.6 minimum
Scan Rate 4 - 24 inches/sec
Reading Angle 45 to 90 degree
Ambient Light 5000 Lux/Max

Symbologies

Types Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar

Communication

Interface USB, Keyboard wedge, RS232, TTL (undecoded)

Enclosure

Dimension Length 5.5 Inches
Diameter 1.2 x .9 Inches
Weight 2.7 ounces
Cable length 71 Inches
Case Material ABS plastic

Power Source

Supply Voltage 5V DC 10%
Surge Power < 800mA
Working Current 60mA 10mA

Environmental

Operating Temperature 32F to 122F
Storage Temperature -4F to 140F
Humidity 20% to 85% RH non-condensing
Drop test 5-foot drop threshold

Warranty

Main Unit 2 years
Cables, Adapters 90 days
