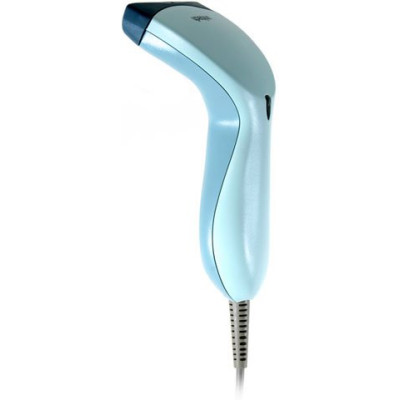

Unitech MS180 Specs
The Unitech MS180 is a reliable and affordable bar code scanner for
retail, healthcare and light industry applications. Its flexible,
multiple interface design supports keyboard wedge, RS232, USB, wand
emulation and 16 popular terminals by simply replacing a cable. In
addition, the IBM PC XT/AT keyboard wedge interface supports eight
different character sets.
The MS180's powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. The ergonomic design makes the scanning process easier and more comfortable. It is also rugged enough to withstand multiple 5-feet drops to concrete.
Standard Features
- Superior contact scanning
- Reads damaged / faded labels
- 5-foot drop threshold
- Available in black or slate blue
- Replaceable interface cable
- Advanced data editing features
- 1 Warranty
The MS180's powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. The ergonomic design makes the scanning process easier and more comfortable. It is also rugged enough to withstand multiple 5-feet drops to concrete.
Standard Features
- Superior contact scanning
- Reads damaged / faded labels
- 5-foot drop threshold
- Available in black or slate blue
- Replaceable interface cable
- Advanced data editing features
- 1 Warranty
Operation & Performance
| Scan Rate | 45 scans / sec |
| Print Contrast Ratio | 45% minimum |
| Resolution | 4 mils minimum |
| Scan angle | 30 AÁ¸- 150 AÁ¸ |
Depth of Field
| Performance | 0 - 0.6 inch on 4-13 mils 0 - 1 inch on 40 mils |
Width of Field
| Performance | 0-2 inch distance |
Operation Modes
| Types | Trigger, flash or continuous |
Interfaces
| Types | Keyboard wedge USB RS232 Wand emulation TTL |
Symbologies
| Types | Code 39 Standard and Full ASCII, Codabar, UPC/EAN with supplement codes, UCC/EAN128, Interleaved 2 of 5, MSI/Plessy code, Standard 2 of 5, China Postal, Code(Toshiba Code), Label Code IV and V, Delta Distance code, Code93, Code128, Code32(Italian Pharmacy |
Optical
| Receiving Device | 2160 Element linear imager |
| Light source | 660 nm visible red LED |
Power Source
| Power Supply | 5 VDC 5 % |
| Operating Current | 100.5 mA @5V (Keyboard Wedge) |
| Standby Current | 21.3 mA @ 5V (Keyboard Wedge) |
| Switch Life Time | Over 1million times micro switch |
| Beep Sound Volume | > 70dB |
Enclosure
| Dimension | 7.4"H x 3.46"W x 3.15"D |
| Weight | 4.4 ounces |
| Housing Material | 30%PC + 70% ABS, UL94U0 |
| Outline Shape | Streamline handy type with Unitech logo |
| Connector Type | RJ-45 phone jack |
Environmental
| Operating Temperature | 32F to 122F |
| Storage Temperature | -4F to 140F |
| Humidity | 20% RH ~ 85% RH |
| ESD Protection | 8KV contact, 12KV Air discharge |
| Drop Test | 5-foot drop threshold |
Regulatory
| Regulatory | CE, FCC Class A, BSMI |
Warranty
| Main Unit | 1 year |
| Cables, Adapters | 90 days |
