Additional Information
| Manufacturer AIDC | Unitech |
|---|---|
| Model Name | HT630 |
| Operating System | DOS |
| RAM Memory | 512 KB |
| Scanner Type | Laser |
| Style | Basic |

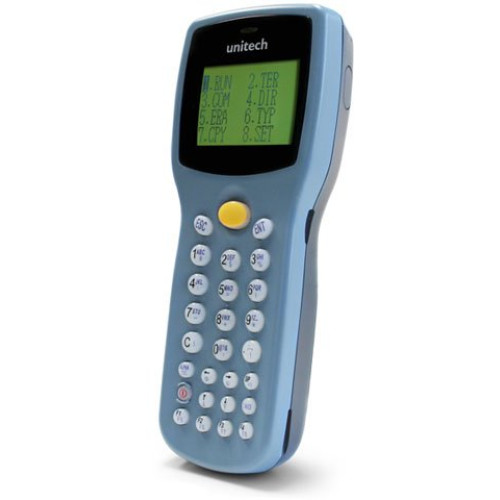

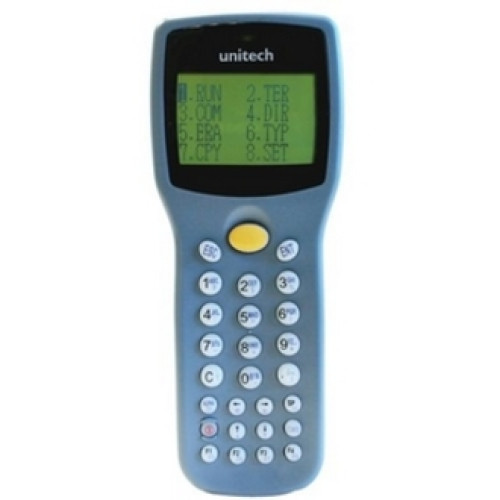

Unitech HT630 Specs
Technical Information
- Connectivity Technology: Batch
- Light Source: Laser
- Drop Specification: 48" To Concrete
- Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 39
- Code 39 Full ASCII
- Code 128
- Code 93
- EAN-8
- EAN-13
- EAN-128
- Interleaved 2 of 5
- ITF
- UPC-A
- UPC-E
General Information
- Product Type: Handheld Terminal
- Brand Name: Unitech
- Manufacturer: Unitech Electronics Co., Ltd
- Product Model: PT630D
- Product Name: PT630D Handheld Terminal
Physical Characteristics
- Height: 6.6"
- Width: 2.6"
- Depth: 1.4"
- Weight (Approximate): 8.64 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- PT630D Handheld Terminal
- A/C Adapter
- Battery
- RS232 Communication Cable
- JobGen Plus Software
- PT630D Handheld Terminal
- A/C Adapter
- Battery
- RS232 Communication Cable
- JobGen Plus Software
- Certifications & Standards:
- CE
- FCC
- Additional Information: Interface: RS232 Via Proprietary Cable
Display & Graphics
- Display Screen Type: LCD
- Number of Lines: 8
- Number of Characters: 20
- Display Color: Monochrome
- Screen Resolution: 128 x 64
Battery Information
- Battery Capacity: 900 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Flash Memory: 256 KB
- Standard Memory: 512 KB
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 27
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: DOS
