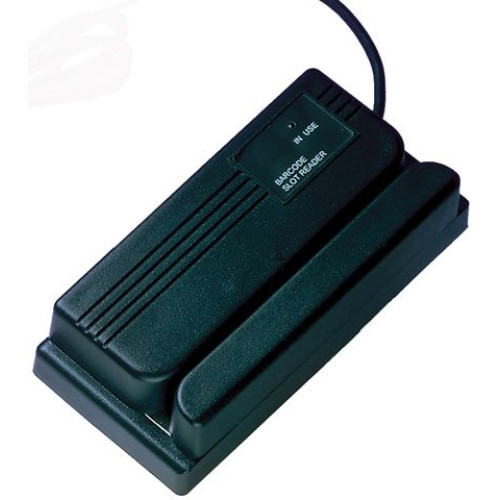

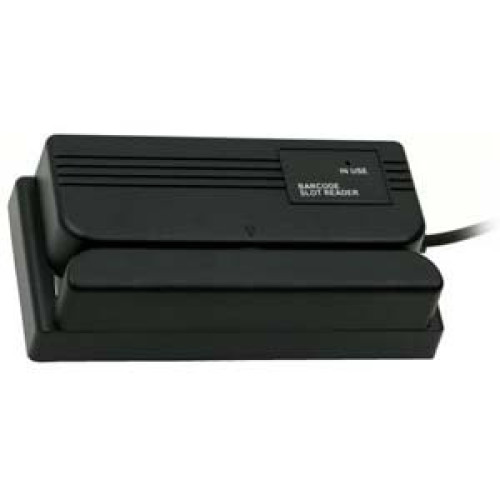

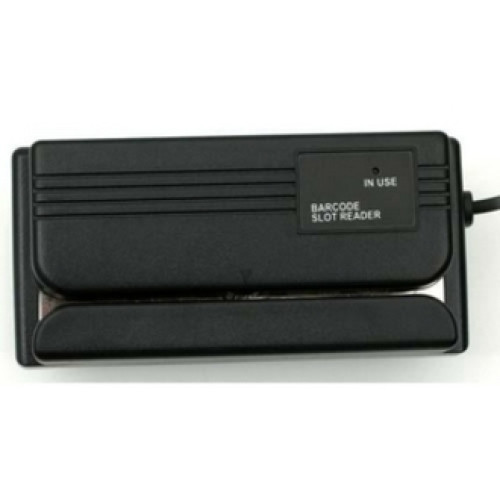

Unitech MS140 Barcode Card Reader
Part #: MS140I-3 | SKU: UNI4528

MS140 Barcode Slot Reader The MS140 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any barcoded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

Unitech MS140 Barcode Card Reader

Part Details: MS140 Bar Code Slot Reader (Infrared with Keyboard Wedge Interface and DIN Connector)

Need a different version of the Unitech MS140 Barcode Card Reader? View all 5 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS140

Unitech MS140 Specs (pdf)

Technical Information

Form Factor: Barcode Slot Scanner
Resolution: 6 mil(s)
Symbologies Supported:
- Code 39
- Code 39 Full ASCII
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Standard 2 of 5
- Code 128
- Code 93
- MSI
- Code 32
- Code 11
- Label Code
- Delta Distance Code
- Plessey Code
- Codabar
Scanner Type: Infrared
Scan Rate: 30 ips
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Depth of Field: 2mm

General Information

Manufacturer: Unitech
Product Name: MS140i Barcode Scanner

Physical Characteristics

Dimensions: 1.3" (33.02mm) x 2.4" (60.96mm) x 4.9" (124.46mm)
Weight: 190 g - TTL with cable

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 0 to 95%

Other

Package Contents:
- MS140i Barcode Scanner
- AT DIN-5 connector
Cables Included: Keyboard Wedge

Warranty

Manufacturer Warranty: 1 Year(s)
