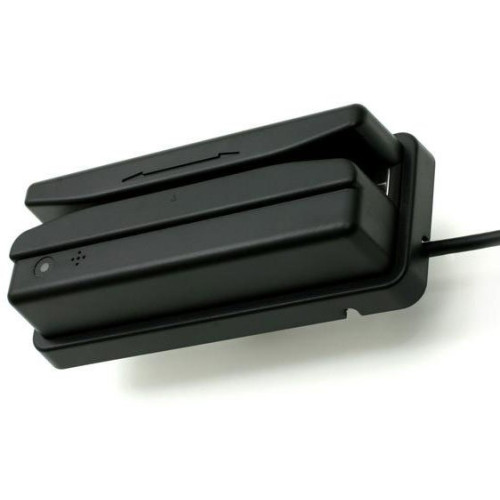

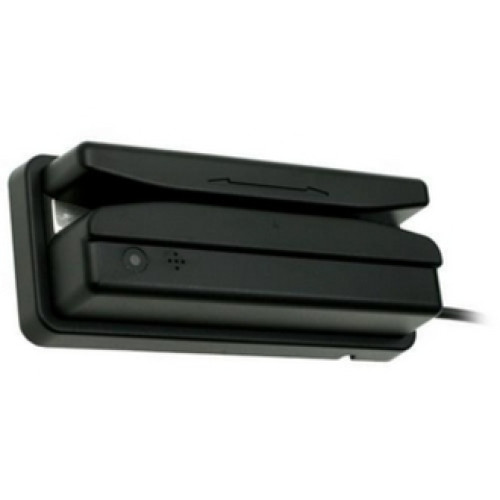

Unitech MS146 Barcode Card Reader
Part #: MS146-3 | SKU: UNI19941

The Unitech MS146 barcode slot reader is ideal for time control, security access, or attendance control applications. The convenient, space-saving shape fits on a desktop or on the wall and interface with all popular devices. The MS146 slot reader has a wide slot and features perfect read rates on high density labels with its resolution of 0.15mm. The sealed optical system with IP54 rugged housing allows the MS146 read labels in the harshest industrial environment without degrading its performance.

Unitech MS146 Barcode Card Reader

Part Details: MS146 Bar Code Slot Reader (AT/XT, Visible Light with IP54)

Need a different version of the Unitech MS146 Barcode Card Reader? View all 20 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS146
Scanner Capability	1D

Unitech MS146 Specs (pdf)

Technical Information

Form Factor: Barcode Slot Scanner
Resolution: 6 mil(s)
Symbologies Supported:
- China Post
- Codabar
- Code 11
- Code 32
- Code 39 Full ASCII
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- EAN-128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI/PLESSEY
- Standard 2 of 5
- Toshiba Code
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- China Postal Code
Scanner Type: LED
Scan Rate: 30 ips
Interface Options: Keyboard Wedge - AT
Interface Connectivity: Corded
Depth of Field: 2mm

General Information

Manufacturer: Unitech
Product Name: MS146 Barcode Scanner, AT Keyboard Wedge

Physical Characteristics

Dimensions: 1.875" (47.62mm) x 1.375" (34.92mm) x 3.75" (95.25mm)
Weight: 6.7 oz - With Cable

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 0 to 95% Non-condensing

Warranty

Manufacturer Warranty: 2 Year(s)
