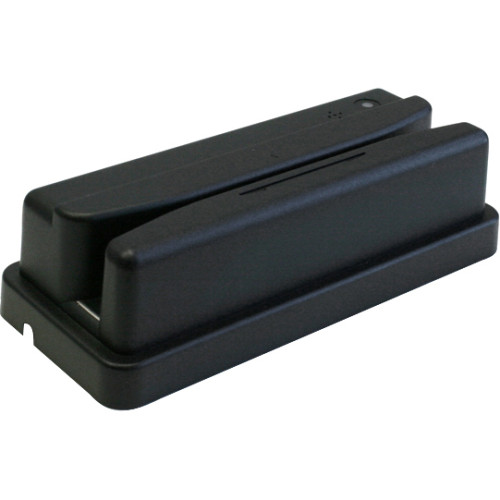

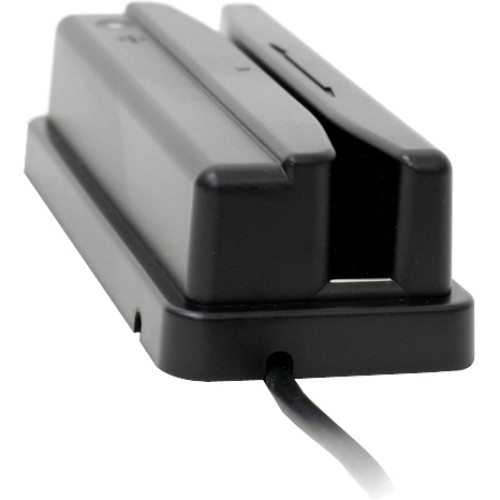

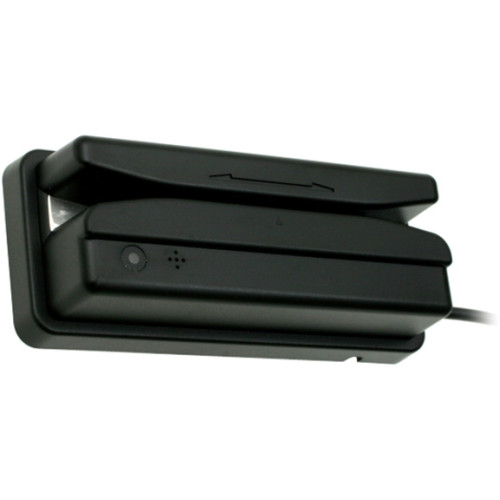

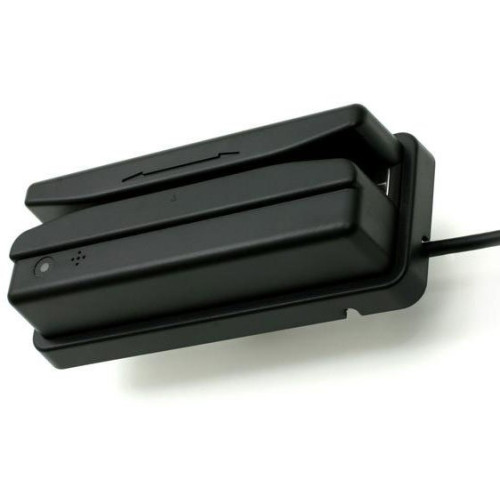

Unitech MS146 Barcode Card Reader
Part #: MS146-4UMG | SKU: UNI207029

The Unitech MS146 barcode slot reader is ideal for time control, security access, or attendance control applications. The convenient, space-saving shape fits on a desktop or on the wall and interface with all popular devices. The MS146 slot reader has a wide slot and features perfect read rates on high density labels with its resolution of 0.15mm. The sealed optical system with IP54 rugged housing allows the MS146 read labels in the harshest industrial environment without degrading its performance.

Unitech MS146 Barcode Card Reader

Part Details: Unitech MS146 Barcode Slot Reader - Cable Connectivity - LED - Serial

Need a different version of the Unitech MS146 Barcode Card Reader? View all 20 configurations

Additional Information

Indoor Outdoor Ruggedness	Outdoor
Interface Options	USB-Keyboard Emulation
Manufacturer AIDC	Unitech
Model Name	MS146
Scanner Capability	1D
Type	No

Unitech MS146 Specs (pdf)

Technical Information

Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- Code 39 standard and full ASCII
- EAN-13
- UPC-A
- EAN-8
- UPC-E
- Standard 2 of 5
- Code 128
- Code 93
- MSI
- Code 11
- Code 32
- Delta Code
- Label Code
- Plessey Code
- Codabar
- Code 39 standard and full ASCII
- EAN-13
- UPC-A
- EAN-8
- UPC-E
- Standard 2 of 5
- Code 128
- Code 93
- MSI
- Code 11
- Code 32
- Delta Code
- Label Code
- Plessey Code
- Codabar
Maximum Scan Resolution: 6 mil
Depth of Field: 0.70"@

General Information

Product Type: Swipe Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS146
Product Name: MS146 Barcode Slot Reader

Physical Characteristics

Height: 3.8"
Width: 1.4"
Depth: 1.9"
Weight (Approximate): 6.70 oz

Interfaces/Ports

Host Interface: Serial

Warranty

Limited Warranty: 2 Year

Other

Platform Supported: PC
