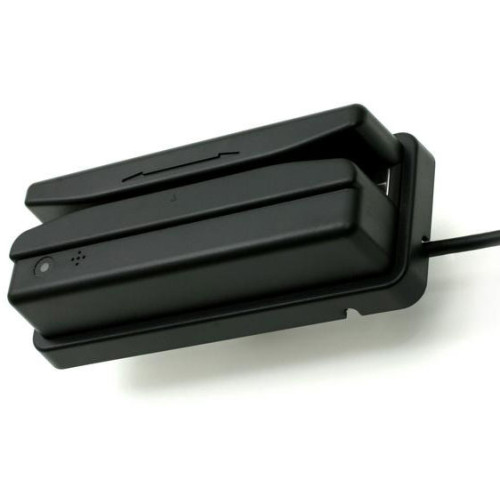

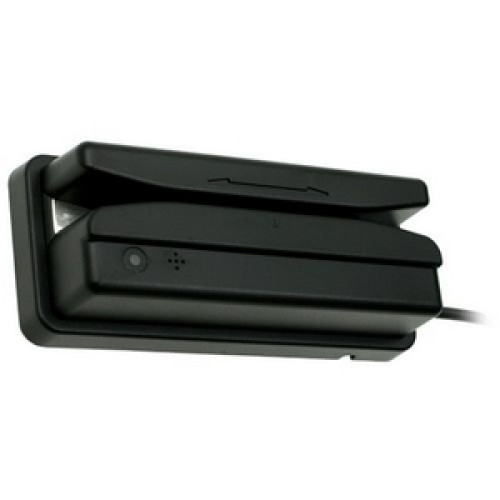

Unitech MS146 Barcode Card Reader
Part #: MS146I-3PS2G | SKU: UNI26592

The Unitech MS146 barcode slot reader is ideal for time control, security access, or attendance control applications. The convenient, space-saving shape fits on a desktop or on the wall and interface with all popular devices. The MS146 slot reader has a wide slot and features perfect read rates on high density labels with its resolution of 0.15mm. The sealed optical system with IP54 rugged housing allows the MS146 read labels in the harshest industrial environment without degrading its performance.

Unitech MS146 Barcode Card Reader

Part Details: Unitech MS146 Bar Code Slot Reader - Wired - Photo Diode

Need a different version of the Unitech MS146 Barcode Card Reader? View all 20 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS146

Unitech MS146 Specs (pdf)

Technical Information

Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (Standard)
- Code 39 Full ASCII
- Code 93
- Code 128
- Delta Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- EAN-128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI/PLESSEY
- Standard 2 of 5
- Toshiba Code
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (Standard)
- Code 39 Full ASCII
- Code 93
- Code 128
- Delta Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- EAN-128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI/PLESSEY
- Standard 2 of 5
- Toshiba Code
- UPC-A with Add-on Code
- UPC-E with Add-on Code
Maximum Scan Resolution: 6 mil
Depth of Field: 0 mil - 78.7 mil@

General Information

Product Type: Swipe Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS146
Product Name: MS146 Barcode Slot Reader

Physical Characteristics

Height: 1.3"
Width: 2.1"
Depth: 5"
Weight (Approximate): 6.70 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards: RoHS Compliance
Platform Supported:
- PC
- Mac
Additional Information:
- Environmental sealing: IP54
- RoHS Compliance

Warranty

Limited Warranty: 2 Year

Power Description

Input Voltage: 5 V DC

Extended Details
