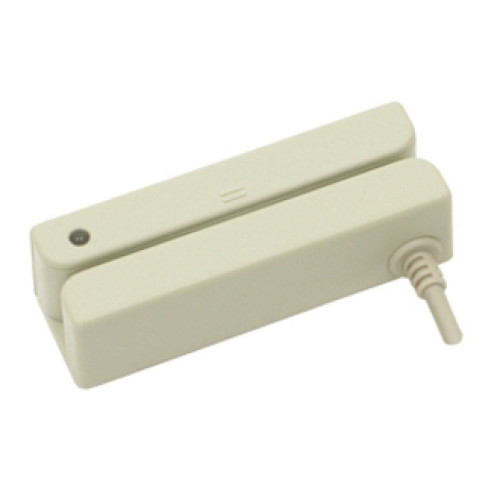

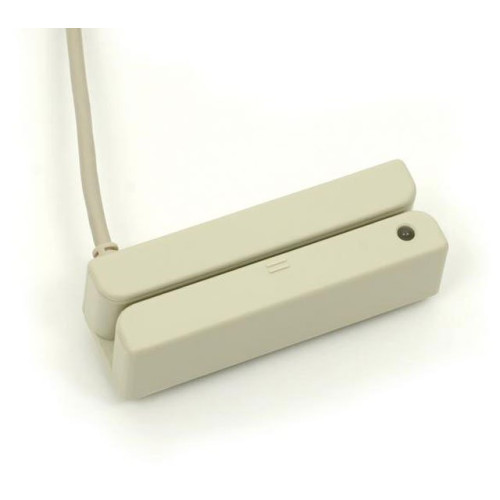

MS240 Credit Card Reader
Part #: MS240-3U | SKU: UNI15387

The Unitech MS240 features triple-track reading and can read cards swiped in both directions. An LED provides feedback to the user indicating ready to read or read error. The MS240 is also easy to configure and use: No programming, software drivers, or external power is required. Just connect the reader to the keyboard and the keyboard port or a USB port on almost any PC or Mac and you're ready to read magnetic stripe cards. Data is read from the card and sent to the PC or Mac just as if it were entered from the keyboard. The MS240 is low-power CMOS, so no external power source is required.

MS240 Credit Card Reader

Part Details: MS240 Reader (Tracks 1, 2 and 3, USB Keyboard Wedge) - Color: Beige

Need a different version of the Unitech MS240 Credit Card Reader? View all 5 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS240

Technical Information

Magnetic Stripe Track Configuration: Triple Track
Minimum Swipe Speed: 3 in/s
Maximum Swipe Speed: 55 in/s
Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
Magnetic Head Life: 1000000 Swipe

General Information

Product Type: Magnetic Stripe Reader
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS240
Product Name: MS240 Magnetic Stripe Reader

Physical Characteristics

Height: 1.2"
Width: 1.4"
Color: Beige
Length: 3.9"
Weight (Approximate): 9 oz

Interfaces/Ports

Interfaces/Ports: 1 x USB 2.0 USB

Other

Certifications & Standards:
- ISO 7811
- AAMVA
- CA DMV

Environmental Conditions

Humidity: 95% Non-condensing
Temperature:
- 32°F (0°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage

Warranty

Limited Warranty: 1 Year

Reliability

MTBF: 125000 Hour

Extended Details
