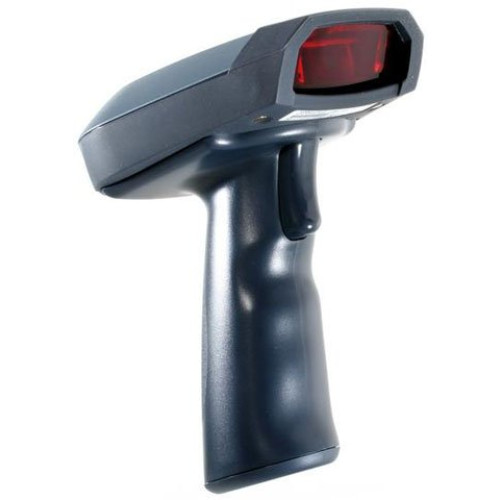

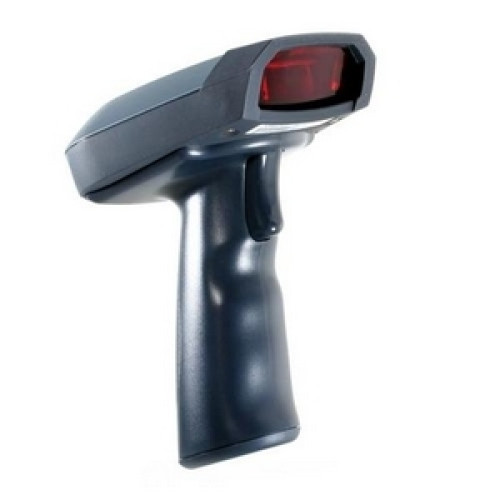

Unitech MS860 Barcode Scanner Unitech MS860 Barcode Scanner Unitech MS860 Barcode Scanner

Unitech MS860 Barcode Scanner
Part #: MS860-WRA | SKU: UNI49212

The wireless Unitech MS860 supports keyboard wedge interface for PS/2, AT, RS232, USB, & Wand. It can range up to 30 yards from its communications and charging cradle. When used as a keyboard wedge, the operation of the keyboard remains unaffected. It uses a 3-in-1 interface which makes it easy to select and replace connection cables. Like other Unitech scanner products, MS860 setup is fast and easy. A barcode menu provides extensive setup options. A simpler quick setup menu lets users configure common features. Once ready, the configuration can be cloned and applied to other units through the use of custom barcode labels. This is very useful when deploying large installations.

Unitech MS860 Barcode Scanner

Part Details: MS860 Wireless Laser Scanner (Bluetooth, RS232 with MS086 Dock and Charging/Communication Station)
Need a different version of the Unitech MS860 Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer Unitech
Model Name MS860
Scanner Capability 1D
Scanner Type Laser
Unitech MS860 Specs Unitech MS860 Specs (pdf)

Technical Information

  • Scan Rate: 35 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8
    • EAN-13
    • EAN-128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI
    • Interleaved 2 of 5
    • Standard 2 of 5
    • UPC-E
    • UPC-A
    • Plessey
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8
    • EAN-13
    • EAN-128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI
    • Interleaved 2 of 5
    • Standard 2 of 5
    • UPC-E
    • UPC-A
    • Plessey
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 25"@

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS860
  • Product Name: MS860 WiFi Barcode Reader

Physical Characteristics

  • Height: 5.7"
  • Width: 3.5"
  • Depth: 5.1"
  • Weight (Approximate): 10.90 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • MS860 WiFi Laser Barcode Reader
    • Dock Charger
    • Power Supply Unit
    • MS860 WiFi Laser Barcode Reader
    • Dock Charger
    • Power Supply Unit
  • Certifications & Standards:
    • CE
    • FCC
    • BSMI
  • Additional Information:
    • Supported Interfaces:
    • RS232
    • USB
    • Keyboard Wedge

Power Description

  • Input Voltage: 3.7 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 1 Year

Network & Communication

  • Bluetooth: Yes
Extended Details
