Additional Information
| Manufacturer | Unitech |
|---|---|
| Model Name | PA690 |
| Style | Phone-size |

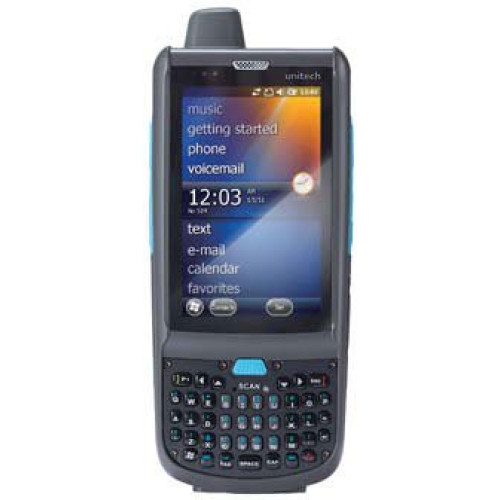

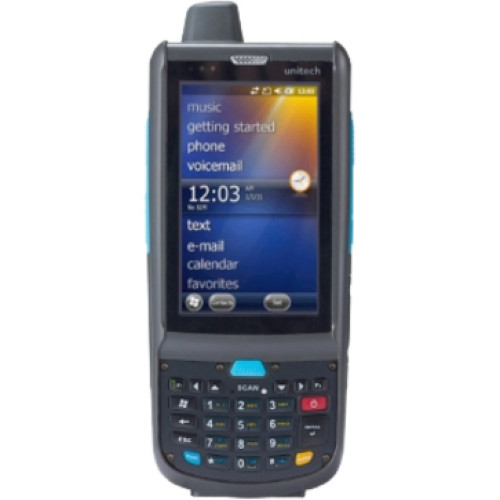

Unitech PA690 Specs
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Drop Specification: 60"
- Barcode Symbology Supported:
- 1D:
- UPC-A/E
- EAN-8/13
- Codabar
- Code 39
- Code 39 full ASCI
- Code 93
- Code 32
- Interleaved & Std. 2 of 5
- EAN 128
- Code 11
- Delta
- MSI/Plessey
- Code 128
- Toshiba
General Information
- Product Type: Handheld Terminal
- Brand Name: Unitech
- Manufacturer: Unitech Electronics Co., Ltd
- Product Model: PA690
- Product Name: PA690 Handheld Terminal
Physical Characteristics
- Height: 7"
- Width: 2.9"
- Depth: 1.6"
- Weight (Approximate): 13.76 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- PA690 Handheld Terminal
- Manual CD
- Stylus
- Battery
- Elastic Stylus String
- Hand Strap
- Power Adaptor & Plugs
- PA690 Handheld Terminal
- Manual CD
- Stylus
- Battery
- Elastic Stylus String
- Hand Strap
- Power Adaptor & Plugs
- Certifications & Standards:
- CCX4
- IP65
- CE
- FCC
- BSMI
- VCCI
- CCC
- NCC
Memory
- Flash Memory: 512 MB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- microSD Card
- microSD High Capacity (microSDHC)
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: WVGA
- Screen Size: 3.8"
- Display Color: Color
- Screen Resolution: 800 x 480
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: External
- Wireless LAN Standard: IEEE 802.11a/b/g
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Nickel Metal Hydride (NiMH)
Processor & Chipset
- Processor Manufacturer: Marvell
- Processor Speed: 806 MHz
- Processor Type: XScale
Keyboard/Keypad
- Keyboard Type: Numeric
- Number of Keys: 26
Software
- Operating System: Microsoft Windows Embedded Handheld 6.5
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
RFID
- Maximum Operating Frequency: 13.56 MHz
