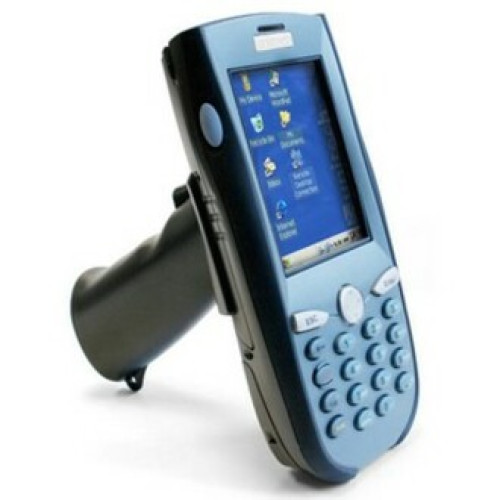

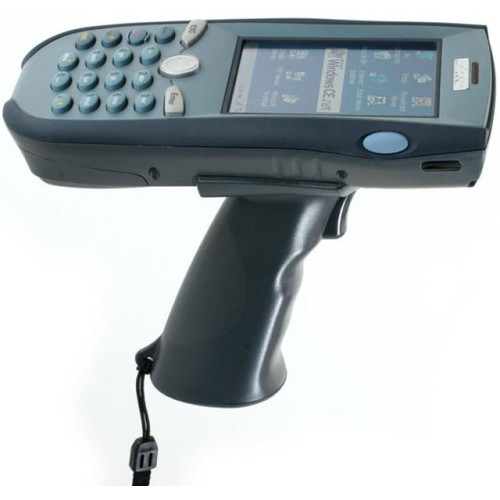

Unitech PA963 Mobile Computer
Part #: PA963-925AD | SKU: UNI20918

The Unitech PA963 portable data terminal, with its ergonomic hand grip, is ideal for warehouse, retail and other environments with lots of ground to cover. The PA963 features expansion slots for wireless cards, giving the ability to upload, download and process data anywhere in your facility at the touch of a button. With a 400MHz Intel processor, Windows CE.NET and rugged construction and IP54 rain and dust seal the PA963 can deliver high performance anywhere. A double cell battery lasts longer between charges and the illuminated touchscreen is visible even in direct daylight.

Unitech PA963 Mobile Computer

Part Details: PA963 Batch Portable Terminal (Gun Grip, Laser, Bluetooth, 64MB RAM, 64MB Flash and CE.NET4.2)

Need a different version of the Unitech PA963 Mobile Computer? View all 2 configurations

Additional Information

Display Resolution	240 x 320
Interface Options	Bluetooth
Manufacturer	Unitech
Model Name	PA963
Operating System	Windows CE .NET
RAM Memory	64 MB
Scanner Type	Laser
Style	Phone-size

Unitech PA963 Specs (pdf)

Technical Information

Connectivity Technology: Batch
Light Source: Laser
Drop Specification: 48" To Concrete
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 32
- Code 93
- Code 128
- EAN-128
- ISBN 128
- Delta Code
- MSI/PLESSEY
- Toshiba Code
- Standard 2 of 5
- Interleaved 2 of 5
- Code 39 (Standard)
- Code 39 Full ASCII
- EAN-8 with (add-on 2/5)
- UPC-A with (add-on 2/5)
- UPC-E with (add-on 2/5)
- EAN-13 with (add-on 2/5)

General Information

Product Type: Handheld Terminal
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: PA963
Product Name: PA963 Portable Terminal

Physical Characteristics

Height: 7.3"
Width: 3.5"
Depth: 5.9"
Weight (Approximate): 1.20 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- PA963 Portable Terminal
- A/C adapter
- Lithium Ion Battery
- USB communication cable
- PA963 Portable Terminal
- A/C adapter
- Lithium Ion Battery
- USB communication cable
Certifications & Standards: IP 54
Additional Information: Pistol-Grip

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11b/g
Wireless Security:
- AES
- WEP
- WPA
- APA2-TKIP

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 240 x 320

I/O Expansions

Expansion Slot Type:
- CompactFlash Type I
- PC Card Type II
- CompactFlash Type II

Memory

Flash Memory: 64 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported: CompactFlash (CF) Card

Battery Information

Battery Capacity: 1850 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 400 MHz
Processor Type: XScale PXA255

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 19

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows CE 5.0 Professional Plus Edition

Touchscreen Information

Touchscreen: Yes

Extended Details

Unitech PA963 Mobile Computer Part #: PA963-925AD | SKU: UNI20918
