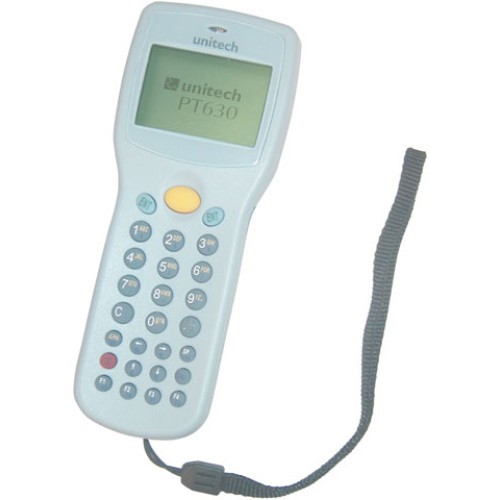

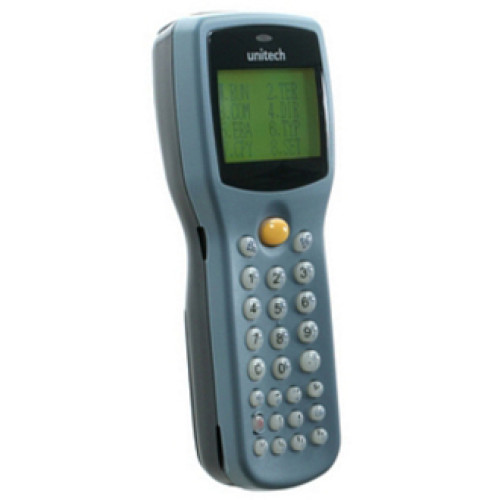

Unitech PT630 Mobile Computer
Part #: PT630D-0000B | SKU: UNI46561

The PT630 is ideal for many environments, including transportation and inventory management, meter reading, mobile sales and other field services. The PT630 is also idea for retail applications.

Unitech PT630 Mobile Computer

Part Details: PT630 Batch Portable Terminal (No Scanner, 512K RAM, Lithium Battery, RS232 Cable, AC Power Supply, Software, Main and Backup Battery, User Manual) - Color: Dark

Need a different version of the Unitech PT630 Mobile Computer? View all 6 configurations

Additional Information

IP Rating	IP54
Manufacturer	Unitech
Model Name	PT630
Operating System	DOS
RAM Memory	512 KB
Scanner Type	Laser
Style	Basic

Unitech PT630 Specs (pdf)

Technical Information

Operating System: DOS Compatible
Processor: NEC V25
Data Collection Type: Batch
Scanner Type: Not Included

General Information

Manufacturer: Unitech
Product Line: Portable Terminals (PT)
Product Name: PT630D Portable Data Terminal

Physical Characteristics

Display:
- Monochrome Backlight - 8 Lines x 20 Characters - LCD
- Monochrome Backlight - 4 Lines x 12 Characters - LCD
Display Resolution: 128 x 64
Keyboard:
- 26 Key Alphanumeric Integrated
- 1 Key Trigger Integrated
Battery Capacity: 900 mAh
Battery Type: Lithium Ion - Included
Dimensions: 6.6" (168mm) x 2.64" (67mm) x 1.38" (35mm)
Weight: 245 g - Approximately with Battery Pack

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 8kV Air Discharge
- 4kV Contact Discharge
Drop Spec: 4' To Concrete

Other

Additional Information: Communication Port: RS-232
Package Contents: PT630D Portable Data Terminal Battery RS232 Cable A/C Power Supply Software

Memory

RAM Memory: 512KB
Flash Memory: 256KB

Agency Approvals

Agency Approvals: FCC CE

Warranty

Manufacturer Warranty: 1 Year(s)

Extended Details

Recommended Accessories for Model: Unitech PT630 Mobile Computer

Unitech PT630 Battery
Part #: 1400-202501G | SKU: UNI27506

Rechargeable Battery

MSRP: $23.00 Price: $14.95

In Stock
Unitech HT630 Power Device
Part #: 1010-602141G | SKU: UNI69456

Power Supply, 100-240V, 9V DC, Compatible with Unitech HT630/MS860.

MSRP: $21.00 Price: $13.65
Unitech PT630 Docks and Cradles
Part #: PT063D-4G | SKU: UNI46562

Ethernet Cradle / 1-Slot - (Power Adapter Sold Separately)
Unitech PT630 Cables, Connectors, and Adapters
Part #: PW201-2 | SKU: UNI26605

RS232 to USB Adapter Cable, DB9F to USB A Male, Straight, Gray
Unitech PT630 Spare Parts
Part #: 5100-601030G | SKU: UNI27508

Battery Charger / 4-Slot - (Power Adapter Sold Separately)
