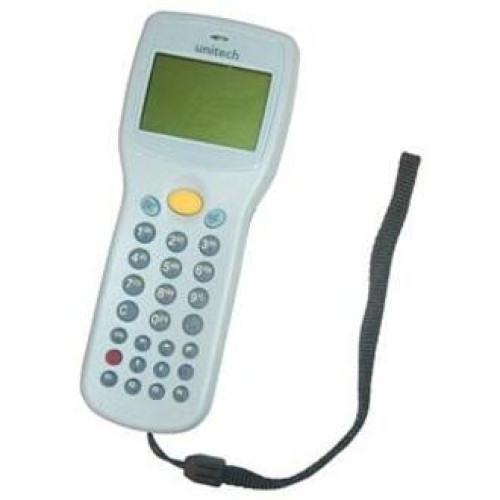

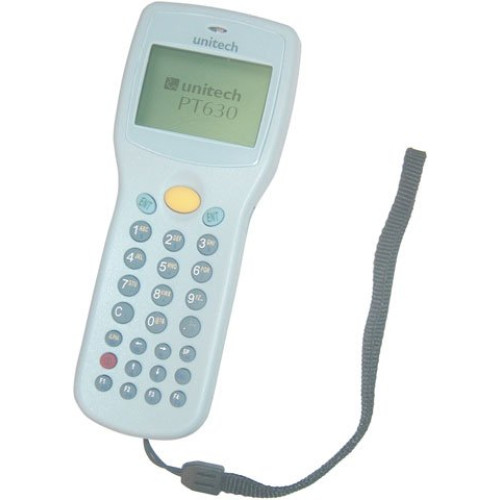

Unitech PT630 Mobile Computer
Part #: PT630DWA-2L00B | SKU: UNI9280

The PT630 is ideal for many environments, including transportation and inventory management, meter reading, mobile sales and other field services. The PT630 is also idea for retail applications.

Unitech PT630 Mobile Computer

Part Details: PT630 Batch Portable Terminal (2.5MB RAM with Standard Laser)

Need a different version of the Unitech PT630 Mobile Computer? View all 6 configurations

Additional Information

Display Resolution	128 x 64
IP Rating	IP54
Manufacturer	Unitech
Model Name	PT630
Operating System	DOS
RAM Memory	2.5 MB
Scanner Type	Laser
Style	Basic

Unitech PT630 Specs (pdf)

Technical Information

Operating System: DOS Compatible
Processor: NEC V25
Data Collection Type: Batch
Scanner Type: Laser Standard Range
Symbologies Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Codabar
- Code 39
- Code 39 Full ASCII
- Code 128
- Code 93
- EAN-128
- China Post
- ITF
- China Postal Code

General Information

Manufacturer: Unitech
Product Line: Portable Terminals (PT)
Product Name:
- PT630 Handheld Terminal
- PT630 Portable Data Terminal

Physical Characteristics

Display:
- Monochrome Backlit LCD - 8 Lines x 20 Characters
- Monochrome Backlit LCD - 4 Lines x 12 Characters
Display Resolution: 128 x 64
Keyboard: 27 Key Numeric Shift Alpha Integrated
Battery Capacity: 900 mAh
Battery Type: Lithium Ion - Included
Dimensions:
- 6.6" (168mm) x 2.64" (67mm) x 1.38" (35mm)
- 6.6" (168mm) x 2.64" (67mm) x x 1.38" (35mm)
Weight: 245 g - With Battery Pack

Other

Additional Information:
- RS232 Via Proprietary Cable
- C Language:
- MSC
- Borland C
- Turbo C
- JobGen Plus:
- A Windows-based program generator
- FormCaching:
- A built-in program generator
- DLL:
- Available for 16/32-bit C++, VB, VFP, and Delphi
Package Contents:
- PT630 Handheld Terminal
- 2.5 MB RAM
- A/C Adapter
- Main and Backup Battery
- User Manual
- RS232 Communication Cable
- PT630 Portable Data Terminal

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 8kV Air Discharge
- 4kV Contact Discharge
Drop Spec: 5' To Concrete

Agency Approvals

Agency Approvals:
- CE
- FCC

Memory

RAM Memory: 2.5MB
Flash Memory: 256KB

Warranty

Manufacturer Warranty: 1 Year(s) Limited
