147741 Wasp

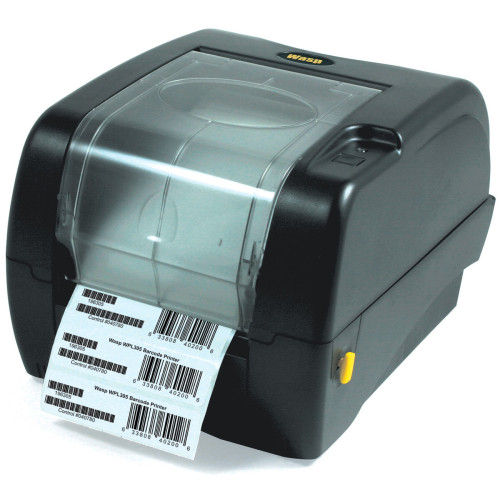

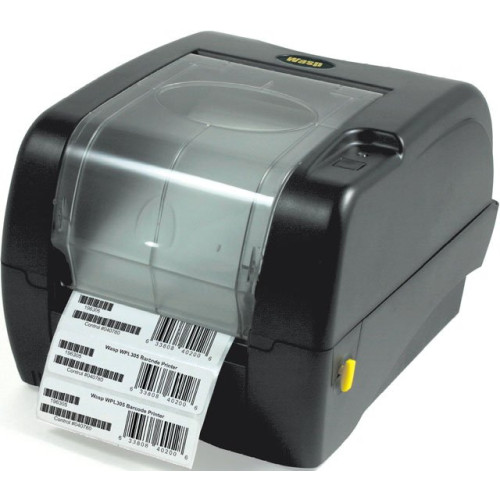

Wasp WPL305 Bar code Printer Part # 633808402020

The WPL305 from Wasp is the latest in a line of high-quality desktop printers. The WPL305 creates barcode labels at a rate of 5 inches per second at 203dpi. It is extremely user friendly, with easy installation and media loading.

633808402020 - Wasp WPL305 Bar code Printer

Part Details: WPL305, Desktop Barcode printer
InStock
MSRP: $529.00 Price: $437.39
In Stock - Ships Free

Additional Information

Filter Filter
Label Core 1 inch
Manufacturer Wasp
Max Label Width 4.00
Max Roll Outer Diameter 5
Maximum Print Width 4.00
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 5
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
  • Thermal transfer or Direct thermal Printing
  • Compact Design
  • Easy media supplies loading
  • 203 dpi print resolution
  • 5 ips print speed
  • 2 Megabyte DRAM standard, 1 Megabyte Flash
  • 4.25"

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • Code 39C
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 11
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • PDF-417
    • Maxi Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Wasp
  • Manufacturer: Wasp Barcode Technologies
  • Product Model: WPL305
  • Product Name: WPL305 Thermal Label Printer

Physical Characteristics

  • Height: 7.4"
  • Width: 8.4"
  • Depth: 12.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type: Label
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
    • Cover Open Sensor
  • Label Core Size: 1"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • Compact Design
    • Easy Media Supplies loading
    • One Indicator LED (Two Color)
    • Font Rotations: 0, 90, 180, 270 degrees

Fonts & Emulation

  • Language Emulation:
    • WPL
    • ZPL
    • EPL

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 2 Year
Extended Details

Recommended Accessories

  • Wasp WPL305 Accessories (633808402082)

    WPL305 Accessories, WPL305 Peeloff with Present Sensor
    MSRP: $49.00 Price: $47.37
    Ship Free in 3-5 Days
  • Wasp WPL305 Accessories (633808403584)

    WPL305, Ribbon Spindle Assembly
    Price: $26.05
    In Stock - Ships Free
  • Wasp WPL305 Accessories (633808402105)

    WPL305 Accessories, WPL305 Cutter OptIon Full Cut
    MSRP: $199.00 Price: $164.53
    Ship Free in 3-5 Days
  • Wasp WPL205 Accessories (633808402068)

    Standalone Keyboard, KDU200 Standalone Keyboard acts as a portable terminal input device for standalone printing applications. No external power supply is needed.
    MSRP: $199.00 Price: $164.53
    Ship Free in 3-5 Days
  • Wasp WPL205 Accessories (633808402167)

    WPL205 & WPL305, Replacement Printhead Kit, 203 dpi, Compatible Printer Model WPL205 & WPL305
    MSRP: $199.00 Price: $192.12
    Ship Free in 3-5 Days
