model-4017 Zebra

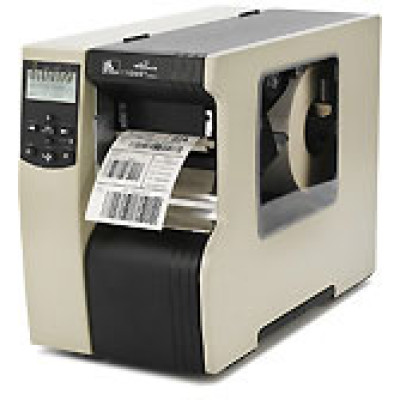

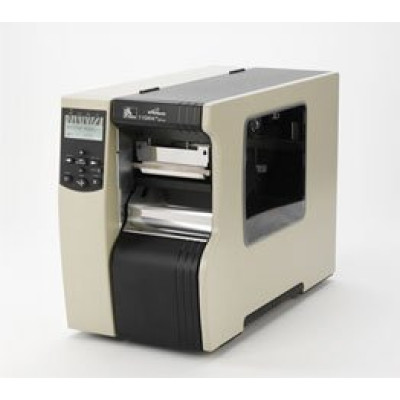

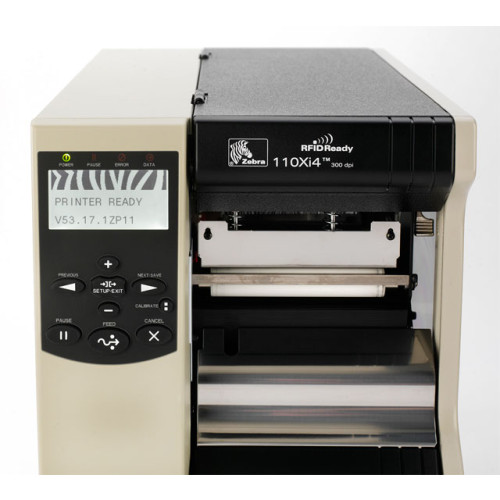

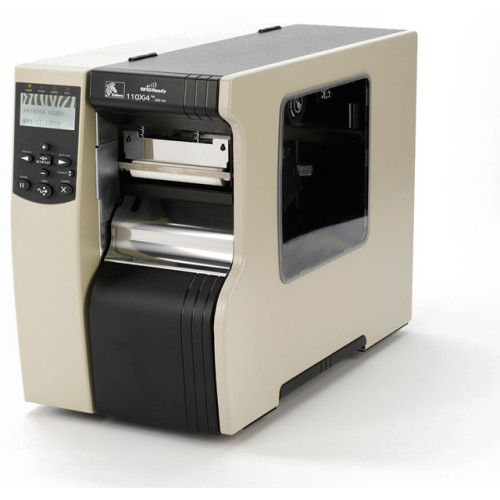

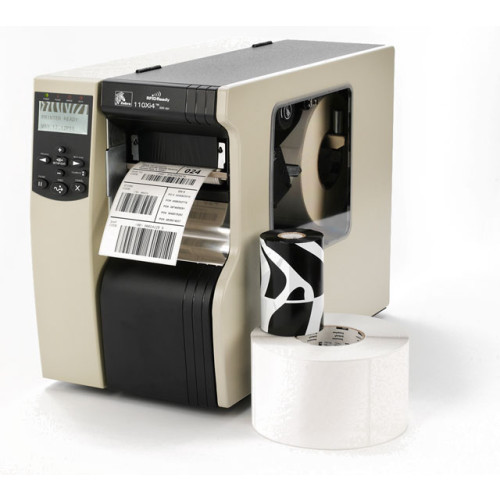

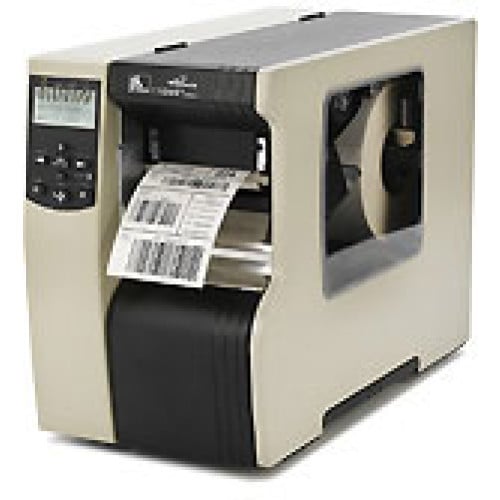

Zebra 110Xi4 Printer

"Zebra 110Xi4 series of built to last printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. Print methods: Thermal transfer or direct thermal 32 bit 133 MHz RISC processor 8 MB Flash memory""""including 2.0 MB user-available non-volatile memory storage for downloadable objects Print speeds up to 14""/356 mm per second for increased batch and print/apply productivity LCD content and navigation customizable to user needs Large, easy-to-use LCD screen simplifies setup Flexible connectivity including simultaneous parallel/Ethernet Advanced ribbon- and media-low LCD/e-mail alerts On-board diagnostic tools and adjustments to ensure optimum print quality Internal real-time clock Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels Clear media side door - easy monitoring of supplies usage without opening the printer systems Thin film printhead with Element Energy Equalizer for superior print quality Serial RS-232 and bi-directional parallel ports""""with auto detect Internal ZebraNet 10/100 Print Server (Ethernet) Dual media sensors - transmissive and reflective, selectable through software or front panel"
  • Print methods: Thermal transfer or direct thermal
  • 32 bit 133 MHz RISC processor
  • 8 MB Flash memory""including 2.0 MB user-available non-volatile memory storage for downloadable objects
  • Print speeds up to 14"/356 mm per second for increased batch and print/apply productivity
  • LCD content and navigation customizable to user needs
  • Large, easy-to-use LCD screen simplifies setup
  • Flexible connectivity including simultaneous parallel/Ethernet
  • Advanced ribbon- and media-low LCD/e-mail alerts
  • On-board diagnostic tools and adjustments to ensure optimum print quality
  • Internal real-time clock
  • Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels
  • Clear media side door - easy monitoring of supplies usage without opening the printer systems
  • Thin film printhead with Element Energy Equalizer for superior print quality
  • Serial RS-232 and bi-directional parallel ports""with auto detect
  • Internal ZebraNet 10/100 Print Server (Ethernet)
  • Dual media sensors - transmissive and reflective, selectable through software or front panel
Starting At: $1,748.75

View all options

Refine Your Options
Shop By
Shopping Options
Category
  1. Thermal Transfer Bar Code Printer (43)
  2. Industrial Bar Code Printer (44)
Manufacturer
  1. Zebra (163)
Frequency Range
  1. UHF (1)
Interface Options
  1. Bluetooth (1)
  2. Ethernet (32)
  3. USB (1)
  4. Wireless (8)
Printer Type
  1. Industrial (44)
Interface
  1. Wi-Fi (802.11 b/g) (1)
Included Features
  1. Clear Media Side Door (1)
  2. Rewinder (2)
  3. XML (5)
Maximum Print Width
  1. 4.00 (49)
  2. 4.00" max width (1)
Labels Per Day
  1. more than 10,000 (2)
Print Speed
  1. 14 (43)
  1. 116-801-00001 - Zebra 110Xi4 Bar code Printer

    110Xi4, Direct Thermal/Thermal Transfer printing, RFID ready, 609 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power cord. Interface cables sold separately.
    $4,780.00 $4,063.00
    Ships Today
    Free Shipping
    - +
  2. 113-8K1-00000 - Zebra 110Xi4 Bar code Printer

    110Xi4, 300 DPI, Wireless+, 10/100, ZebraNet B/G
    $3,535.00 $3,004.75
    Ships Today
    Free Shipping
    - +
  3. 116-801-00101 - Zebra 110Xi4 Bar code Printer

    110Xi4, Thermal transfer Industrial Printer (600 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 4" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & 3" Media Spindle). Includes power supply. Cables sold separately. See accessories.
    $5,445.00 $4,628.25
    Ships Today
    Free Shipping
    - +
  4. 112-801-00000 - Zebra 110Xi4 Bar code Printer

    110Xi4, Direct Thermal/Thermal Transfer printing, RFID Ready, 203 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power cord. Interface cables sold separately.
    $2,865.00 $2,435.25
    Ships Today
    Free Shipping
    - +
  5. 113-801-00200 - Zebra 110Xi4 Bar code Printer

    110Xi4, Thermal transfer printing, RFID ready, 305 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces, Rewinder, Peeler. Includes US power cord. Interface cables sold separately.
    $3,340.00 $2,839.00
    Ships Today
    Free Shipping
    - +
  6. 112-801-00200 - Zebra 110Xi4 Bar code Printer

    110Xi4, Direct Thermal/Thermal Transfer printing, RFID ready, 203 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces, Rewinder, Peeler. Includes US power cord. Interface cables sold separately.
    $3,149.00 $2,676.65
    Ships Today
    Free Shipping
    - +
  7. 113-801-00000 - Zebra 110Xi4 Bar code Printer

    110Xi4, Direct Thermal/Thermal Transfer printing, RFID ready, 305 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power cord. Interface cables sold separately.
    $3,060.00 $2,601.00
    Ships Today
    Free Shipping
    - +
  8. 116-801-00201 - Zebra 110Xi4 Bar code Printer

    110Xi4, Direct Thermal/Thermal Transfer printing, RFID ready, 600 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces, Rewinder, Peeler. Includes US power cord. Interface cables sold separately.
    $5,063.00 $4,303.55
    Ships Today
    Free Shipping
    - +
  9. 112-801-00100 - Zebra 110Xi4 Bar code Printer

    110Xi4, Thermal transfer printing, RFID ready, 203 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces, Cutter, Catch Tray. Includes US power cord. Interface cables sold separately.
    $3,531.00 $3,001.35
    Ships Today
    Free Shipping
    - +
  10. 112-8K1-00000 - Zebra Bar code Printer

    Thermal Transfer printing, 4.09" print width, RS- 232 serial, USB 2.0, 802.11 b/g, Centronics parallel, 203 dpi,tear bar, North America power cord, media supply hanger.
    $3,344.00 $2,842.40
    Ships Today
    Free Shipping
    - +

Items 1 to 10 of 163 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. ...
  7. 17

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (72287)

    Z-Select 4000T, 3.25" x 5,831" Thermal transfer paper label. Continuous roll. 6 roll/case. Also available as a roll (Part# 72287-R).
    $160.52
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (800622-205)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 3,292 labels/roll. 4 roll case. Also available as a roll (Part# 800622-205-R).
    $100.51
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72378)

    Z-Select 4000T All-Temp, 4" x 6.50" Thermal transfer paper label. Not perforated. 880 labels/roll. 4 roll case.
    $124.28
    Ships In 3-5 Days
    - +
  • Zebra Z-Select 4000T Label (98962)

    Z-Select 4000T, 4" x 5,594" Thermal transfer paper label. Continuous roll. 4 roll case. Also available as a roll (Part# 98962-R).
    $109.93
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72282)

    Z-Select 4000T, 2.75" x 1.25" Thermal transfer paper label. Not perforated. 4,240 labels/roll, single roll. Also available as a roll (Part# 72282-R).
    $187.92
    Ships Today
    - +

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    $104.59
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    $233.06
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    $267.69
    Ships In 3-5 Days
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    $217.93
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK06045)

    5586 Premium Wax-Resin, 2.36" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK06045-R)
    $157.09
    Ships Today
    - +

Recommended Warranties

  • Zebra 110Xi4 Service Contract (Z1RS-XI41-2C0)

    Service Contract - 2 year, Select, Renewal, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $815.00 $628.46
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1A2-XI41-300)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $1,060.00 $817.37
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1R2-XI41-2C0)

    Service Contract - 2 year, Essential, Renewal, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $1,220.00 $940.75
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AS-XI41-300)

    Service Contract - 3 year, Select, Purchased within 30 days of Device, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $560.00 $431.82
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AF-XI41-3C0)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, 110Xi4, 140Xi4, 170Xi4, 3 Years, Comprehensive
    $785.00 $605.33
    Ships In 3-5 Days
    Free Shipping
    - +
Standard Features
  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor

More Standard Features
  • 16 MB SD RAM; 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Improved head test for element out
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • ZPL or ZPL II Programming Language
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixel), graphical, multilingual, backlit LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Unicode - Compliant
  • Intelligent printhead

Printer Specifications
Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory
  • 16 MB SDRAM
  • 8 MB Flash
Print width: 4.0" (102mm)
Print length: 150" (3810 mm) maximum with 110Xi4 203 dpi using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.5" (114mm)
Minimum label and liner width: .79" (20mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold
Ribbon Characteristics
Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: .79" (20mm) to 4.33" (110mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40F (5C) to 105F (40C)
Thermal transfer DT: Operating temperature: 32F (0C) to 105F (40C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK

Physical Characteristics
Width: 10.31" (261.9mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)
Related Products
Options
  • ZebraNet Wireless Plus Print Server
  • ZebraNet Internal Wireless Plus (Discontinued)
  • Internal IPv6 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Rewind with peel
  • Cutter
  • Bi-fold media door with clear panel
  • Media supply spindle for 40 mm cores
  • 64MB Flash Memory with ZPL II and XML (with element out detection)
  • 64MB Flash Memory with ZPL II and XML (without element out detection)
  • 16MB SDRAM (Printhead element out detection) with ZPL II and XML
  • Scalable and international fonts
  • Applicator interface
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge
  • Enterprise Connector
  • ZebraNet b/g Print Server
Communication and Interface Capabilities
  • USB 2.0 port (12 Mbits per second)
  • RS-232C/422/485 multi-drop (optional adaptor)
  • High-speed, bi-directional, IEEE 1284 parallel interface
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Applicator interface
  • IPV6 Print Server
  • ZebraNet b/g Print Server

Programming Languages
Core programming languages: ZPL II, ZPL, XML
Bar Codes/Symbologies
Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Codabar
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
Aztec
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBMCode Page 850 International Characters
