model-15454 Zebra

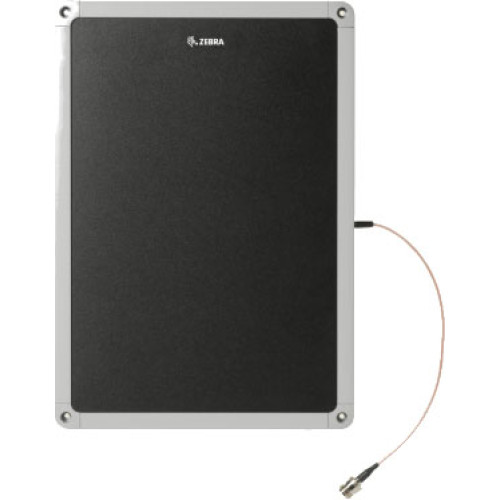

Zebra AN620 RFID Antenna

The AN620 antenna are ideally suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments. The AN620 is versatile for multiple usages, within any environment and the aesthetics won't compromise performance.
  • Front to back ratio: 22 dB
  • Axial ratio < 2 dB
  • Gain: 4.0 dBiL
  • 3 dB beam width: 75 degrees horizontal, 48 degrees vertical
  • Power: 6 watts (max. input)
  • Voltage Standing Wave Ratio (VSWR) 1.4: 1
  • Frequency range 902-928 MHz, 864-868 MHz (EU version)
  • Integrated mounting holes
  • Type "N" Female connection
  • Polarization: LHCP
Starting At: $330.00 $237.60

View all options

Refine Your Options
Shop By
Shopping Options
Category
  1. Far Field RFID Antenna (1)
Manufacturer
  1. Zebra (2)
Form Factor
  1. Slim (1)
Frequency Range
  1. UHF (1)
  1. AN620-SCL71131US - Zebra AN620 RFID Antenna

    AN620, RFID Antenna, UHF, Indoor, Far Field, Left-Hand Circular Polarization, 4 dBiL Gain, Industrial, Slimline Ultra Low Profile, 15.4 x 10.8 x 0.47, US Frequency.
    $330.00 $237.60
    Ships Today
    Free Shipping
    - +
  2. AN620-SCL71130EU - Zebra AN620 RFID Antenna

    AN620, Slimline Ultra Low Prof Antenna 15.4 X10.8 X0.47 EU
    $330.00 $237.60
    Ships In 3-5 Days
    Free Shipping
    - +
