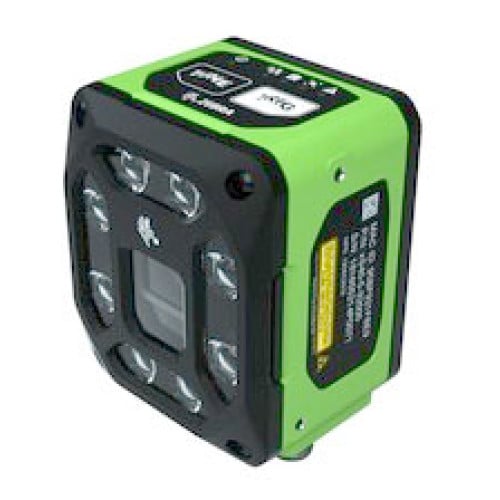

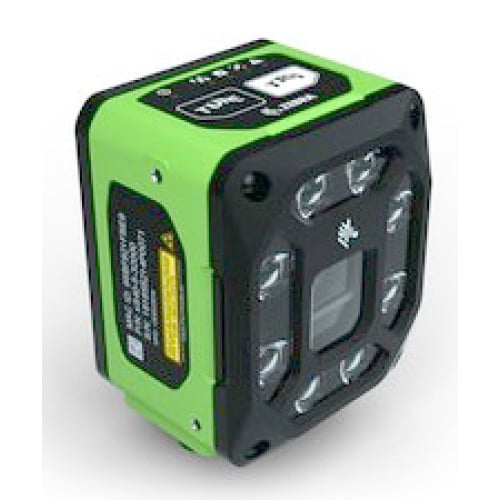

Zebra FS40 Fixed Barcode Scanner

• Top-notch read rates with ideal image capture
• Accurate barcode capture on the first try every time
• Capability to add features as needed
• Infinite expansion possibilities
• Capability to power through Ethernet
• Extensive features with remarkable flexibility and excellent value

Address the demands of today’s production and logistic environments with Zebra’s FS40 Fixed Industrial Scanner. Designed for high-speed efficiency, the FS40 ensures accurate track-and-trace by decoding information on every component and package flawlessly during production, storage, and distribution. The result? Superior manufacturing, warehousing, distribution, and logistics processes that motivate businesses to reach their full potential.

Zebra Aurora Software Suite

A Unified Interface for Zebra’s Scanner and Vision Products Zebra Aurora elevates automation control in manufacturing and logistics with a refined, user-friendly interface. Seamlessly set up, deploy, and manage all Zebra Fixed Industrial Scanners and Machine Vision Cameras, removing the need for separate utilities.

Ideal for All Skill Levels

Whether users are experienced or beginners, they can easily utilize the intuitive interface, minimizing training and setup times. Experienced users benefit from direct access to all functionalities, while first-time users are supported through step-by-step processes enhanced by Learn-As-You-Go features that include built-in tutorials and videos.

Streamlined Setup

Instant Setup With Auto-Tune Auto-Tune ensures optimal image quality with the press of a button, delivering consistent and reliable read rates right out of the box.

IoT Support Through Zebra Savanna

Prepared for IoT, the FS40 can transmit images to Zebra’s cloud service, Zebra Savanna, or other cloud platforms—enabling regulatory compliance and image storage without the overhead of server management.

Ethernet-Based Power

Reduce complexity and costs with Power-over-Ethernet (PoE). The FS40 and its peripherals are powered directly through the network, eliminating power drops and the need for additional power supplies. Non-PoE options include a standard 24V DC power supply or USB-C port.

Unlimited Expansion Capabilities with USB-C

Achieve maximum flexibility with USB-C, which enables single-cable power and limitless accessory integration. Easily connect Zebra devices such as printers and tablets, or use external storage for backup or analysis.

Flexible I/O Ports

Enjoy the ultimate I/O versatility with up to nine digital I/O ports that can be independently controlled to extend application functionality and improve process automation.

Simple Deployment

Peak Performance Lighting

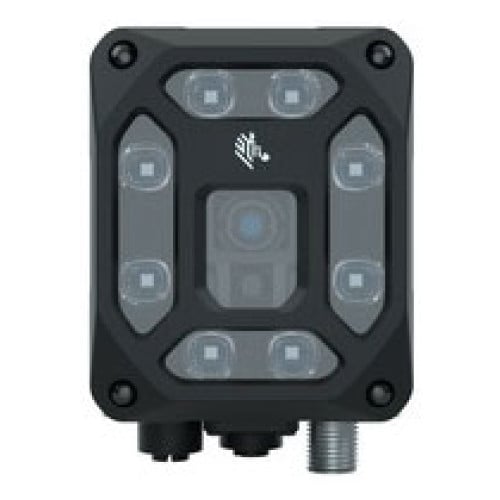

Achieve the highest image quality for reliable barcode reading with Zebra’s FS40, which features powerful built-in lighting options. Select from red, white, blue, infrared, or all-in-one models to capture high-quality images consistently.

Robust and Industrial-Ready

Count on the FS40’s resilient design for dependable operation in harsh environments. The aluminum housing is chemical and oil-resistant, while the IP65 and IP67 ratings ensure protection from dust and high-pressure washdowns, as well as total water immersion.

Operator Notification Systems

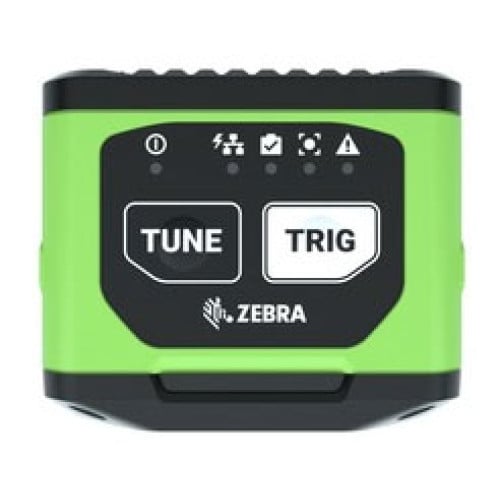

Operators can instantly see decode status via 360° LED lights, ensuring product quality and traceability. The five built-in status LEDs facilitate easy monitoring of camera conditions, while an adjustable-volume beeper audibly signals successful decodes, keeping workers focused on their tasks.
