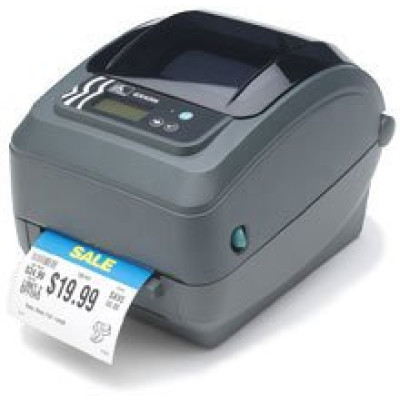

Zebra GX420d Barcode Label Printer

Zebra GX420d Barcode Label Printer

Zebra GX420d Barcode Label Printer

The direct thermal Zebra GX420d is extra compact to fit in congested workspaces and produces 203 dpi print resolution at speeds up to 6 ips. The GX420d features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel. Increase your media choices and application flexibility with cutter, peeler, and adjustable black line sensor options.
Discontinued - Need Assistance
See all options
Zebra GX420d Specs Zebra GX420d Specs (pdf) Zebra GX420d Driver Zebra GX420d Driver (download)

Standard Features

  • Print speed: up to 6" (152 mm) per second
  • Print method: direct thermal
  • EPL and ZPL programming languages standard
More Standard Features
  • OpenACCESS design for easy media loading
  • Smallest footprint in a 4-inch thermal printer
  • Dual-wall reinforced plastic construction
  • 32 bit RISC processor
  • XML-enabled printing
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
Memory
  • Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
  • Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)
Print width: 4.09" (104 mm)
Print length: 39" (991 mm)
Print speed: 6" (152 mm)/sec
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.25" (108 mm)
Minimum label and liner width: 0.75" (19 mm)
Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter: 5" (127 mm)
Core diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm)
Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Operating Characteristics
Operating temperature DT: Operating temperature: 40F (5C) to 105F (41C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
Physical Characteristics
Width: 6.75" (171 mm)
Height: 6" (152 mm)
Depth: 8.25" (209 mm)
Weight: 3.1 lbs (1.4 kg)
Shipping weight: 7.1 lbs (3.2 kg)
Orientation Center
Related Products
Options
  • 64 MB Flash memory with real time clock (68 MB total)
  • 10/100 internal Ethernet connectivity
  • 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port)
  • Bluetooth wireless connectivity with LCD display (replaces Parallel port)
  • Adjustable media sensor
  • Cutter for various media types
  • Dispenser - label peel and present with present sensor
  • Asian font kits
Communication and Interface Capabilities
  • Auto-sensing Serial RS-232 (DB-9)
  • USB V1.1, bi-directional
  • Centronics Parallel
  • Optional: 10/100 internal Ethernet (replaces Parallel port)
  • Optional: 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port)
  • Optional: Bluetooth wireless connectivity with LCD display (replaces Parallel port)
Programming Languages
Core programming languages: EPL2, Line Mode, ZPL I/ZPL II
Bar Codes/Symbologies
Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
  • 16 resident expandable ZPL II bitmap fonts
  • One resident scalable ZPL font
  • Five resident expandable EPL2 bitmap fonts
  • Supports user-defined fonts and graphics - including customer logos
Extended Details
