Zebra 105SL Barcode Label Printer Zebra 105SL Barcode Label Printer

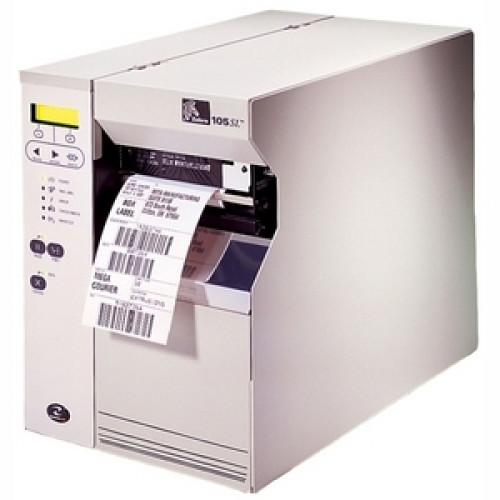

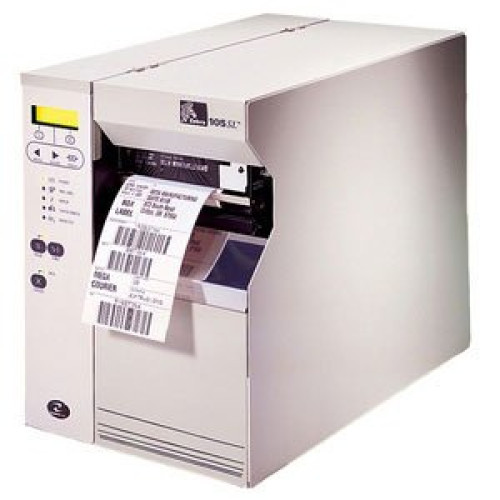

Zebra 105SL Barcode Label Printer
Part #: 10500-2001-0330 | SKU: ZEB16667

The 105SL is the newest member of Zebra's S Series Printers and it's also the fastest combining enhanced memory and processing capacity with rugged and reliable all-metal construction. Based on a proven platform with cutting-edge ZebraLink connectivity the 105SL is the choice of experienced users.

Zebra 105SL Barcode Label Printer

Part Details: Thermal Transfer Industrial Printer (203 dpi, Wi-Fi Ready (Radio Card Not Included), Ethernet, and Serial (RS-232) interfaces, 4" max print width, 6MB DRAM, 4MB Flash). Includes power supply. Cables sold separately. See accessories.
Need a different version of the Zebra 105SL Barcode Label Printer? View all 45 configurations

Additional Information

Interface Options Serial (RS-232), Wi-Fi
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name 105SL
Print Resolution 203 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra 105SL Specs Zebra 105SL Specs (pdf)

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.52"
  • Maximum Label Length: 39"
  • Media Sensor: Transmissive
  • Printer Language: ZPL
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 6MB
  • Flash Memory: 4MB

General Information

  • Manufacturer: Zebra
  • Product Name: 105SL Label Printer

Physical Characteristics

  • Dimensions: 15.5" (393.7mm) x 11.2" (284.48mm) x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)
  • Shipping Weight: 63lb (28.58kg)

Included Features

  • Included Features:
    • Base Version
    • ZebraNet Wireless PrintServer

Agency Approvals

  • Agency Approvals:
    • UL 1950
    • CISPR 22 Class B
    • CSA 950
    • IEC 950
    • 801-2, -3 and -4
    • Canadian Doc Class A
    • FCC Class A
    • CE Compliance

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 41°F (5°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • 105SL Label Printer
    • Power Cord With US Plug
    • Utilities & Driver CD
    • ZebraNet Connectivity CD for Wireless Print Server

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s)
