Additional Information
| Manufacturer | Zebra |
|---|---|
| Max Roll Outer Diameter | 8 |
| Model Name | 110XiIIIPlus |
| Print Resolution | 609 dpi |
| Printer Type | Industrial |

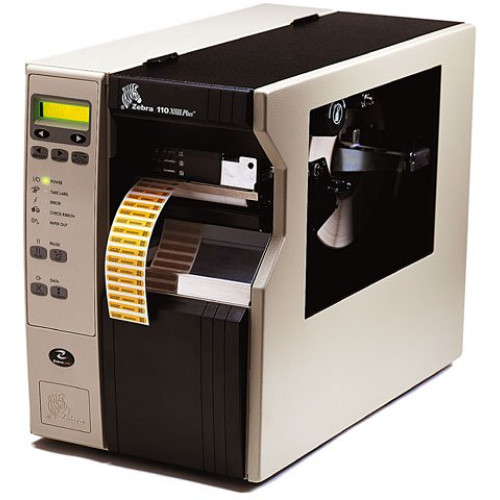

Zebra 110XiIIIPlus Specs
Technical Information
- Maximum Mono Print Speed: 14 in/s
- Maximum Print Resolution: 600 dpi
- Print Color: Monochrome
- Maximum Print Width: 4"
- Recommended Use: Label Print
- Features:
- Clear Media Side Door
- Media Supply Spindle
- Mirror Printing
- Barcode Symbology Supported:
- Code 11
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- UCC Case Codes
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC 2 and 5 Digit Extension
- EAN With 2 and 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Planet Code
- Codabar
- Codablock
- PDF-417
- Code 49
- Data Matrix
- Maxi Code
- QR Code
- TLC 39
- Micro PDF
- Aztec Code
- RSS
- GS1 DataBar
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: Xi4
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: 110Xi4
- Product Name: 110Xi4 Label Printer
Physical Characteristics
- Height: 15.5"
- Width: 10.3"
- Depth: 20.4"
- Form Factor: Desktop
- Weight (Approximate): 50.04 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: China RoHS
- Platform Supported: PC
- Package Contents:
- 110Xi4 Label Printer
- North American Edition 120 VAC Power Cord
- 110Xi4 Label Printer
- North American Edition 120 VAC Power Cord
- Certifications & Standards:
- BSMI
- cTUVus
- CCC
- CE
- C-Tick
- EN55022 Class B
- EN55024
- EN61000-3-2,3
- FCC Class B
- GOST-R
- ICES-003 Class B
- IEC 60950-1 / EN60950
- KCC
- NOM
- S Mark
- STB
- UkrSEPRO
- VCCI
- ZIK
- EC 60950-1
- EN 55022 Class B
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
Media Types & Handling
- Maximum Label Width: 4.50"
- Maximum Label Length: 12.50 ft
- Media Type:
- Black Mark
- Continuous Label
- Roll Fed
- Die-cut Label
- Fanfold
- Media Thickness: 12 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Fonts & Emulation
- Language Emulation:
- ZPL II
- XML
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Power Description
- Input Voltage: 110 V AC
- Power Source: AC Supply
Warranty
- Limited Warranty: 1 Year
Display & Graphics
- Display Screen Type: LCD
